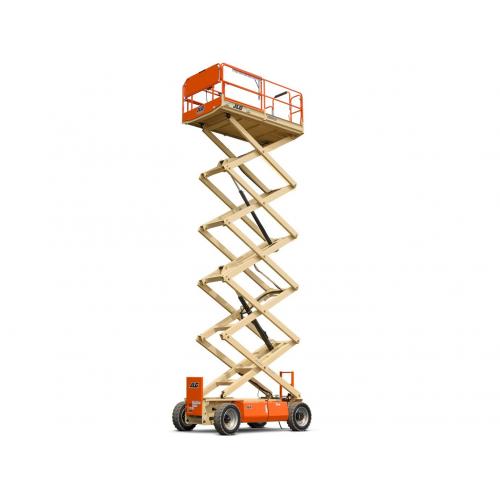

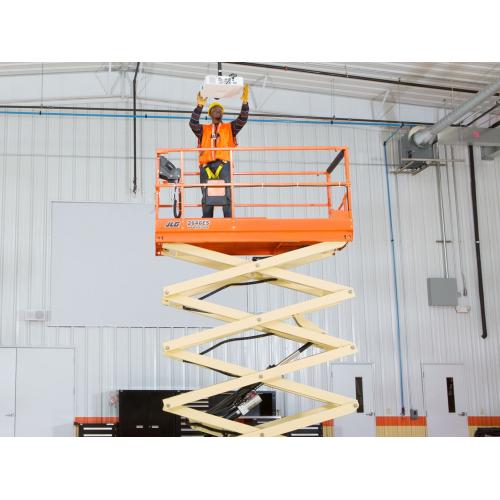

2646ES JLG

Details

  • Quieter, cleaner operation for a variety of environments
  • Electric drive and integrated components with only two hydraulic hoses and four hydraulic fittings on the entire machine will keep you on the job longer and reduce your operating costs by reducing chances for leaks and service calls
  • Tight turning radius for great maneuverability
  • Delivers 200% more battery life*
    *Compared to a competitive model under similar test conditions. Actual results may vary.

Power Source

Batteries

4 x 6V, 220 amp-hr

Charger

20 amp automatic

General

Brakes

Electric, Friction

Capacity Hydraulic Reservoir

2 gal. / 6.44 L

Hydraulic Pump

Fixed Displacement Gear

Machine Weight

4975 lb / 2256.62 kg

Performance

Drive Speed Platform Elevated

0.50 mph / 0.80 km/h

Drive Speed Platform Lowered

2.50 mph / 4.02 km/h

Gradeability

25 %

Lift Time

41 sec.

Lower Time

50 sec.

Maximum Drive Height

26 ft / 7.92 m

Maximum Lift Height

26 ft / 7.92 m

Platform Capacity Extension

250 lb / 113.40 kg

Platform Capacity Unrestricted

1000 lb / 453.59 kg

Turning Radius Outside

7 ft 11 in. / 2.42 m

Turning Radius Inside

0 ft / 0 m

Dimensional Data

Ground Clearance

5 in. / 0.13 m

Machine Height

7 ft 9 in. / 2.36 m

Machine Height Rails Folded

6 ft 6 in. / 1.97 m

Machine Length

8 ft 3 in. / 2.5 m

Machine Width

3 ft 10 in. / 1.17 m

Platform Dimension A

8 ft 3 in. / 2.5 m

Platform Dimension B

3 ft 8 in. / 1.12 m

Platform Extension Length

4 ft 2 in. / 1.27 m

Platform Height

26 ft / 7.92 m

Platform Height Lowered

4 ft 2 in. / 1.26 m

Platform Railing Height

3 ft 7 in. / 1.1 m

Tire Size

16 x 5 in

Wheelbase

6 ft 10 in. / 2.08 m

Reach Specifications

Platform Height

26 ft / 7.92 m

Working Height

32 ft / 9.75 m
