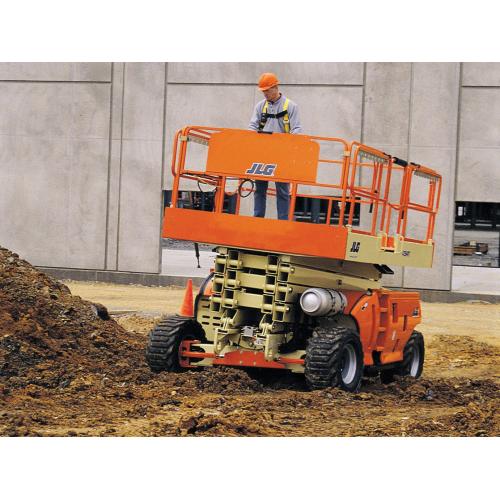

260MRT JLG

Details

  • Narrow 69 in chassis fits into spaces other scissor lifts can’t
  • Large work platform and 1,250 lb platform capacity so you can be more productive
  • Standard four wheel drive and 35 percent gradeability keep you going

Power Source

Engine Model

Kubota 24.5 hp (Dual Fuel)

Engine Type Diesel Hrc

Kubota 23.5 hp (Diesel)

Fuel Tank Capacity Diesel

8 gal. / 28.39 L

General

Brakes

Spring Applied, Hydraulically Released

Capacity Hydraulic Reservoir

15 gal. / 56.78 L

Machine Weight

7360 lb / 3338.44 kg

Performance

Drive Speed Platform Elevated

0.50 mph / 0.80 km/h

Drive Speed Platform Lowered

3.50 mph / 5.63 km/h

Gradeability Wd

35 %

Lift Time

27 sec.

Lower Time

21 sec.

Maximum Drive Height

26 ft / 7.92 m

Platform Capacity

1250 lb / 566.99 kg

Platform Capacity Extension

300 lb / 136.08 kg

Turning Radius Outside

14 ft 5 in. / 4.39 m

Dimensional Data

Ground Clearance

8 in. / 0.2 m

Machine Height

7 ft 10 in. / 2.37 m

Machine Height Rails Folded

6 ft 5 in. / 1.96 m

Machine Length

8 ft 9 in. / 2.67 m

Machine Width

5 ft 9 in. / 1.75 m

Platform Dimension A

5 ft 5 in. / 1.65 m

Platform Dimension B

8 ft 6 in. / 2.59 m

Platform Extension Length

4 ft / 1.22 m

Platform Height

26 ft / 7.92 m

Platform Height Lowered

4 ft 2 in. / 1.26 m

Platform Railing Height

3 ft 8 in. / 1.1 m

Tire Size

26 x 12 Lug Tread

Wheelbase

6 ft 6 in. / 1.98 m

Reach Specifications

Platform Height

26 ft / 7.92 m

Working Height

32 ft / 9.75 m
