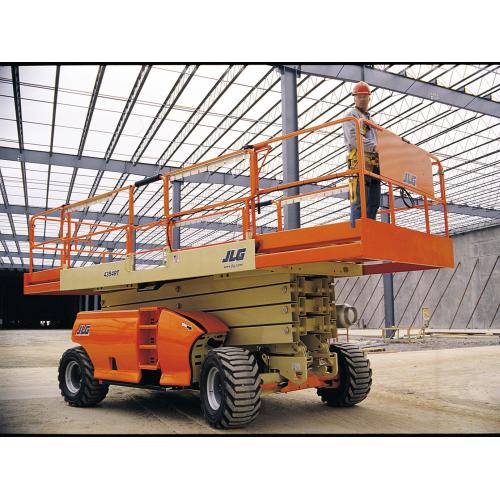

4394RT JLG

Details

  • Larger platform and increased lift capacity

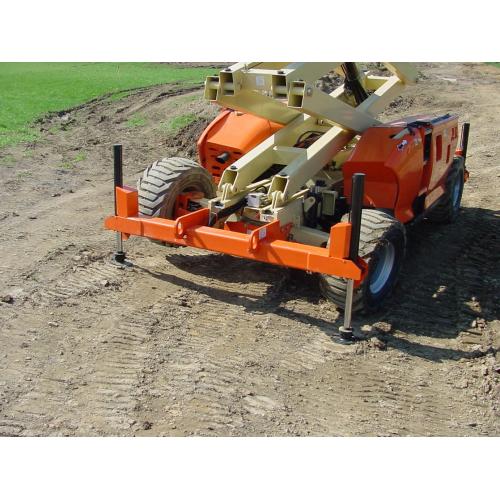

  • Optional one-touch leveling jacks for quicker setup
  • Maximum lift and lower time of 43 seconds gives you more time to get your work done
  • New twin-pump-powered 4WD for a higher level of performance over rough terrain
  • Equipped with a fuel-efficient Tier 4 engine

Power Source

Capacity Fuel Tank

30 gal. / 113.56 L

Engine Type Diesel

DEUTZ T4F D2.9L4 48.8 hp

Engine Type Dual Fuel

GM Vortec 3000 MPR 82hp

General

Capacity Hydraulic Reservoir

32 gal. / 121.13 L

Machine Weight

15300 lb / 6939.96 kg

Performance

Drive Speed Platform Elevated

0.50 mph / 0.80 km/h

Drive Speed Platform Lowered

4 mph / 6.44 km/h

Gradeability

45 %

Lift Time

40 sec.

Lower Time

43 sec.

Maximum Drive Height

43 ft / 13.11 m

Maximum Lift Height

43 ft / 13.11 m

Platform Capacity

1500 lb / 680.39 kg

Platform Capacity Extension

500 lb / 226.80 kg

Turning Radius Outside

19 ft 6 in. / 5.93 m

Dimensional Data

Ground Clearance

1 ft / 0.3 m

Machine Height

9 ft 6 in. / 2.89 m

Machine Height Rails Folded

7 ft 2 in. / 2.19 m

Machine Length

12 ft 8 in. / 3.86 m

Machine Width

7 ft 10 in. / 2.39 m

Platform Dimension A

12 ft 6 in. / 3.81 m

Platform Dimension B

7 ft 2 in. / 2.18 m

Platform Extension Length

4 ft / 1.22 m

Platform Height

43 ft / 13.11 m

Platform Height Lowered

5 ft 10 in. / 1.79 m

Platform Railing Height

3 ft 8 in. / 1.1 m

Tire Size

33 x 15.5 Superwide

Wheelbase

9 ft 8 in. / 2.95 m

Reach Specifications

Platform Height

43 ft / 13.11 m
