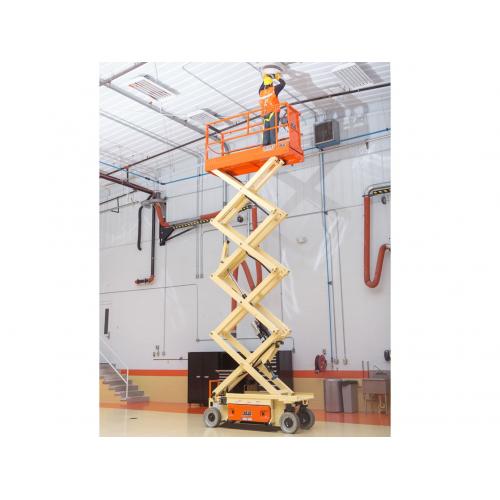

2632ES JLG

Details

  • Quieter, cleaner operation for a variety of environments
  • Electric drive and integrated components with only two hydraulic hoses and four hydraulic fittings on the entire machine will keep you on the job longer and reduce your operating costs by reducing chances for leaks and service calls
  • Narrow width fits through most standard doorways and tight aisles
  • Delivers 200% more battery life*
    *Compared to a competitive model under similar test conditions. Actual results may vary.

Power Source

Batteries

4 x 6V, 220 amp-hour

Charger

20 amp automatic

General

Brakes

Electric, Friction

Capacity Hydraulic Reservoir

1 gal. / 4.73 L

Hydraulic Pump

Fixed Displacement Gear

Machine Weight

4635 lb / 2102.40 kg

Performance

Drive Speed Platform Elevated

0.50 mph / 0.80 km/h

Drive Speed Platform Lowered

2.75 mph / 4.43 km/h

Drive System

24V Electric

Gradeability

25 %

Lift Time

33 sec.

Lower Time

37 sec.

Maximum Drive Height

25 ft 6 in. / 7.77 m

Platform Capacity Extension

250 lb / 113.40 kg

Platform Capacity Restricted

800 lb / 362.87 kg

Platform Capacity Unrestricted

500 lb / 226.80 kg

Turning Radius Inside

0 in. / 0 mm

Turning Radius Outside

6 ft 9 in. / 2.06 m

Dimensional Data

Ground Clearance

4 in. / 0.09 m

Machine Height

7 ft 8 in. / 2.33 m

Machine Height Rails Folded

6 ft 5 in. / 1.94 m

Machine Length

7 ft 7 in. / 2.3 m

Machine Width

2 ft 8 in. / 0.81 m

Platform Dimension A

2 ft 6 in. / 0.76 m

Platform Dimension B

7 ft 7 in. / 2.3 m

Platform Extension Length

3 ft / 0.9 m

Platform Height

25 ft 6 in. / 7.77 m

Platform Height Lowered

4 ft 1 in. / 1.23 m

Platform Railing Height

3 ft 7 in. / 1.1 m

Tire Size

16 X 5 in

Wheelbase

6 ft 2 in. / 1.88 m

Reach Specifications

Platform Height

25 ft 6 in. / 7.77 m

Working Height

31 ft 6 in. / 9.6 m
