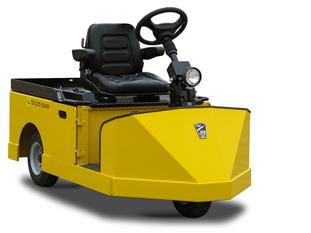

TT-316 Taylor Dunn

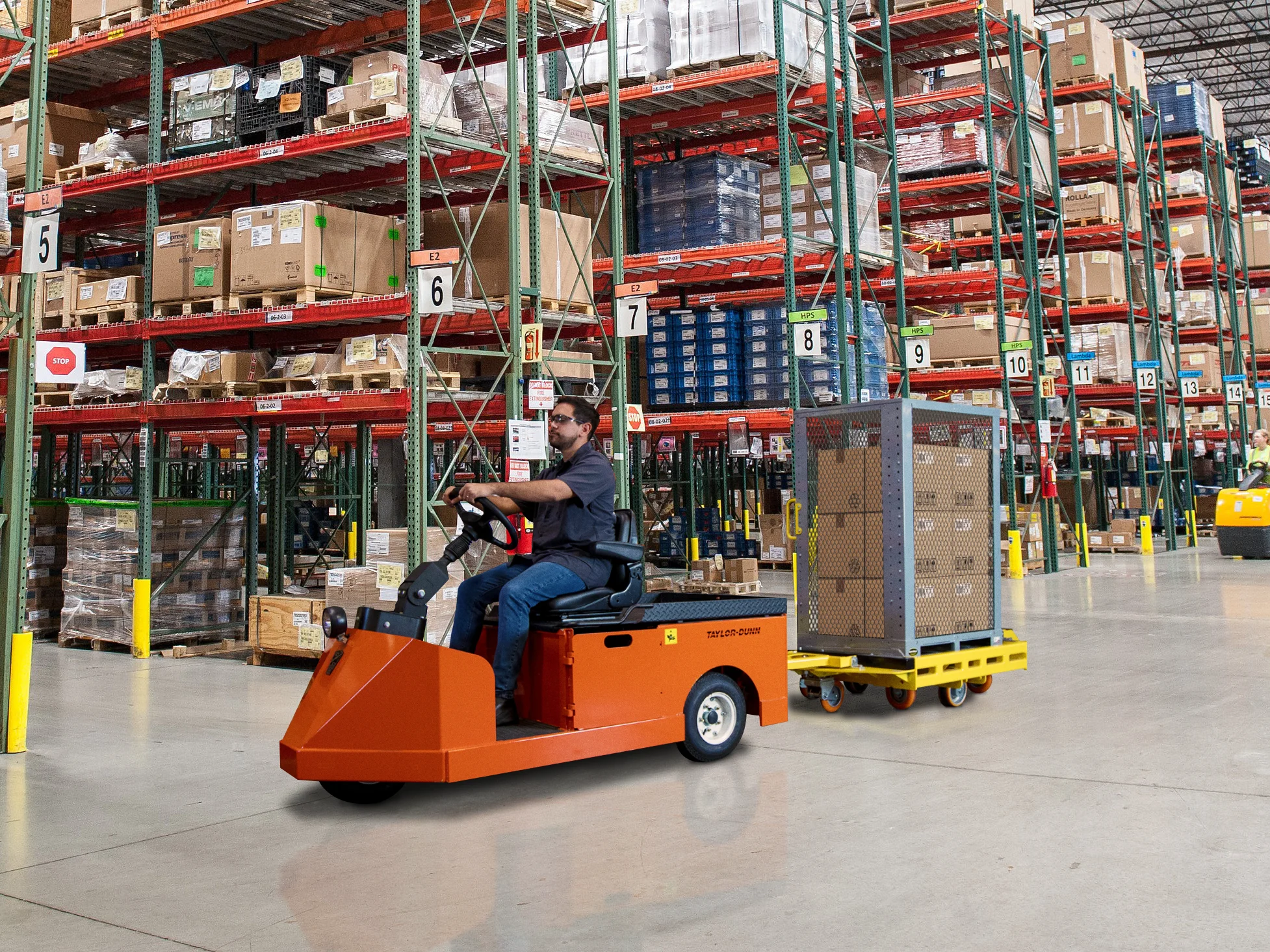

The TT-316 tow tractor is a highly maneuverable electric tow tractor with up to 16,000 lb load capacity that competes as an effective alternative to forklifts for horizontal material handling.
Engineered for modern safety, ergonomic comfort and proven reliability in today’s demanding operations, the TT-316 will demonstrate:
- A reduction in labor demands
- An enhancement in safety
- A significant decrease in both acquisition and operating costs
- 36 volt AC electric
- Speed up to 6 mph
- Range up to 18 miles
- Tow capacity up to 16,000 pounds
- One person capacity
PERFORMANCE
Load Capacity: 400 lb / 182 kg
Tow Capacity: 16,000 lb / 7,257 kg
Drawbar Pull: 320 lb / 1.42 kN
Max Speed (Unloaded): 6 mph / 9.6 km /h
Turning Radius: 74.5 in / 189 cm
DIMENSIONS
Overall Length: 83 in / 211 cm
Overall Width: 39.5 in / 100 cm
Overall Height: 54 in / 138 cm
Wheel Base: 55 in / 140 cm
Deck Size (WxL): 38 x 25 in / 96.5 x 63.5 cm
Deck Height: 29 in / 74 cm
POWER SUPPLY / DRIVE TRAIN
Motor: 7.5 HP AC
Battery: Battery-less from Factory – Fits 36V Industrial batteries
Battery Compartment Size (WxLxH): 38 x 16 x 15 in / 96 x 40 x 38 cm
Battery Weight Limits (Max/Min): 1,250 lbs / 500 lbs ; 567 kg / 227 kg
Battery Connector Type: SB350 Gray
Battery Lead Position: A
Battery Lead Length: 30 in / 76 cm
Charger: Off-Board Charging
CHASSIS
Frame: Fully Welded, Unitized, 10 Gauge
Steering: Tilt/Telescoping Gear Steering
Suspension: Front Coil Springs, Rear Leaf Springs
Brakes: 3-Wheel Hydraulic Disc, Automatic/Electric Parking Brake
Tires: 4.80 x 8, Load Range C, Pneumatic
GENERAL
Maximum Occupancy: 1 / 250 lb / 113 kg
Unit Weight: 1,150 lb / 522 kg
Seat: Single, Adjustable, Black Vinyl, with Spring Suspension, Operator Presence Switch
Instrumentation: LCD Multi-Function Dash Display, Forward / Reverse Selector, Key Switch, Electric Horn, Reverse Alarm, DC/DC Converter
Light Accessories: LED Headlight, Taillight, Brake Light, Optional Light Bar with Reverse, Strobe and Brake Light
Conformance: Type E OSHA 1910.178, ANSI B56.9
