C-432 Taylor Dunn

Description

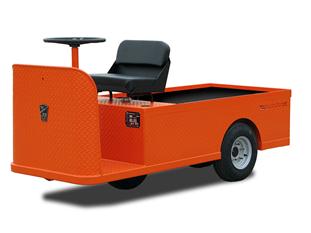

Taylor-Dunn’s C-432 has the shortest turning radius available in a sit-down combination burden carrier/tow tractor. With a 28″ wheel base, these vehicles can maneuver into corners other powered trucks simply cannot reach – indoor or outdoor.

Model

C-432

Type

Electric

Speed

9 mph (14.4 km/h)

Range

20 miles (32 km)

Load Capacity

1,400 lbs. (635 kg)

Tow Capacity

DBP: 175 lbs. Tow Capacity: 8,750 lbs. (3977 KG

People

N/A

Description

Heavy-duty batteries, built-in fully-automatic chargers make sure these trucks are always ready to go.  They are ideal for moving loads over smooth floors in warehousing, hospitals, schools and other environments where quiet fume free operation is necessary.  Only 30 inches wide, these compact trucks clear narrow aisles and standard doorways. Full 360° turns can be made in a mere 140″. Adjustable seats and all-steel construction ensure a comfortable, safe ride. Individually padded seat and backrest are covered with tough heavy-duty vinyl upholstery. Bumpers are heavy-duty steel welded to the frame; 16 gauge steel diamond plate facing covers all exterior surfaces.

Options

Accessories

– Headlight, taillight

– Hour meter

– Light on top of cab

– Stoplight

– Windshield wiper

– Mirrors

– Reverse warning buzzer

Hitches

– Hitch automatic coupling

– Pintle hitch

Cab

– Fiberglass cab & vinyl doors

Color

– Special paint color

– Undercoating

Batteries

– 244 amp-hour batteries

Tires

– 16 1/4 x 4 x 11 1/4 extra cushion solid tires

– Soft solid tires

Brakes

– Hydraulic

Deck

– Stake sides

– Diamond plate deck

Performance

Speed

9 mph (14.4 km/h)

Range

20 miles (32 km)

Load Capacity

1,400 lbs. (635 kg)

Tow Capacity

DBP: 175 lbs. Tow Capacity: 8,750 lbs. (3977 KG

Passengers

1

Dimensions

Weight

918 lbs. (417 kg)

Length

79″ (200cm)

Width

29.5″ (74.9cm)

Height

Less Cab: 40″ (101.6cm) With Cab: 64.5″ (163.8cm)

Hitch Height

8.5″ (21.58cm)

Outside Turn Radius

70″ (177.8cm)

Wheel Base

28″ (71.1cm)

Deck

Width: 28.5″ (74.9cm) Length: 40″ (101.6cm) Height: 23.9″ (58.4cm)
