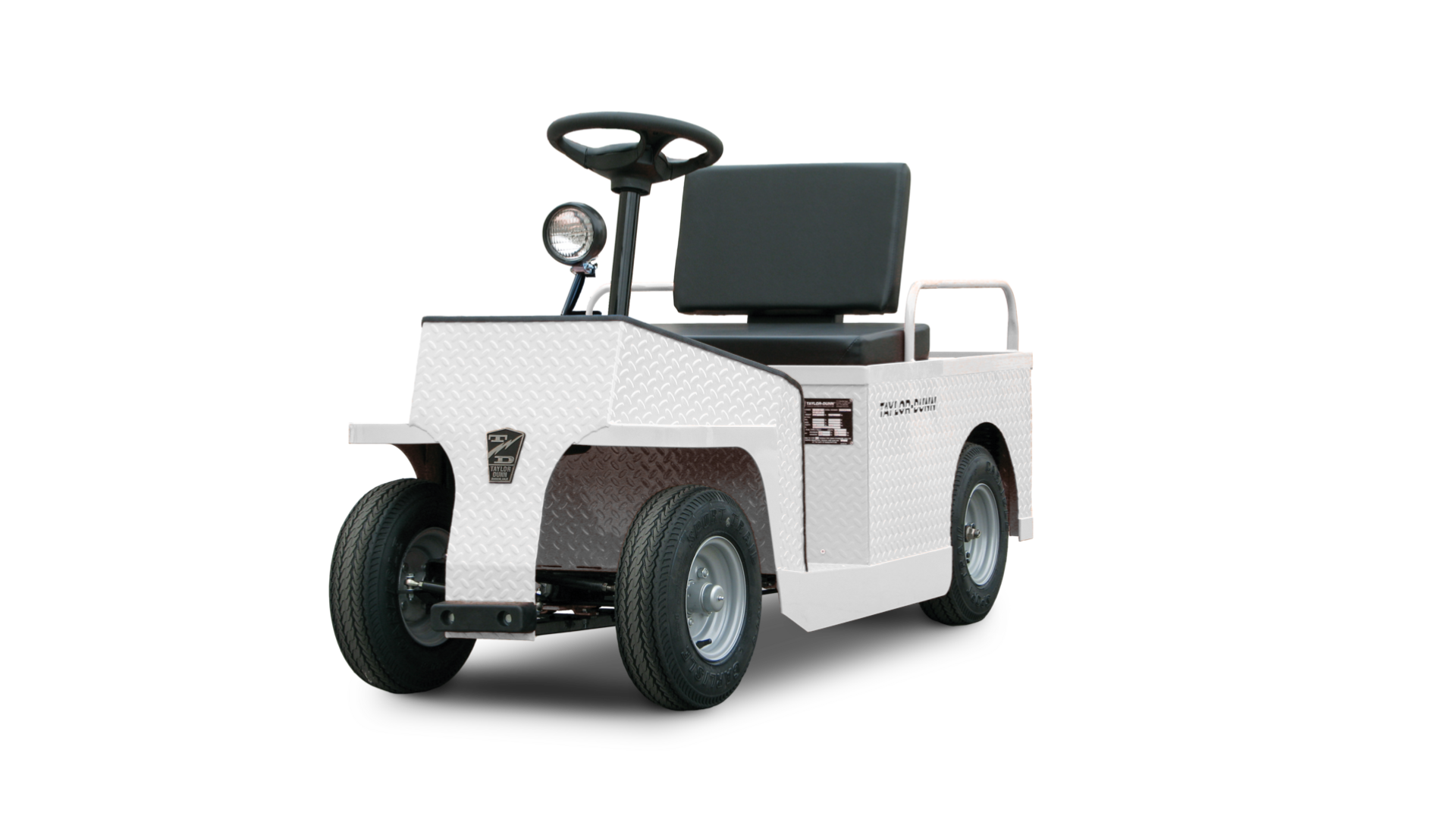

SS-546 Taylor Dunn

Description

The 4-wheel SS-546 provides time proven reliable personnel transportation for executive, supervisors, security, maintenance, mail carriers and other workers whose jobs keep them on the go.

Model

SS-546

Type

Electric

Speed

9 mph (14.4 km/h)

Range

20 miles (32 km)

Load Capacity

600 lbs. (272 Kg.)

Tow Capacity

2,000 lbs. (909 kg)

People

2

Description

The versatile design of the SS-546 allows users to convert the vehicle from personnel carrier to burden carrier in a matter of seconds. This vehicle can carry up to two people or 600 lbs. of load on the job site. With its innovative articulated front axle design, the SS-546 offers a short turning radius that can maneuver dependably around warehouses, industrial complexes, resorts and hotels, shopping malls, hospitals and other commercial complexes. Its all welded steel unitized body and frame is built to last for years of use, with standard front bumper and an automotive steering wheel.  Modularized control system design provides ease of maintenance on all electrical systems. Geared steering, 9 mph speed, and on-board charger provide safety, efficiency and convenience during daily operation.

Options

Charger

– Portable 25 amp charger

– Portable 25 amp charger

– Built in 110V/220V 50 hz

Accessories

– Strobe light, amber – on pole

– Reverse buzzer

– Hour meter

Tires

– Soft Solid Tires

Deck

– Diamond plate deck

– Clipboard holderBattery

– 244 amp hr battery

Frame

– Smooth skin

Color

– White or special paint color

– Undercoating

Performance

Speed

9 mph (14.4 km/h)

Range

20 miles (32 km)

Load Capacity

600 lbs. (272 Kg.)

Tow Capacity

2,000 lbs. (909 kg)

Passengers

2

Dimensions

Weight

830 lbs. (376 kg.)

Length

89″ (226.1cm)

Width

30″ (76.2cm)

Height

Less Cab: 41″ (104.5cm) With Cab: N/A

Hitch Height

N/A

Outside Turn Radius

81″ 205.7cm)

Wheel Base

54″ (137.2cm)

Deck

Width: 30″ (76.2cm) Length: 19″ (48.3cm) Height: 24″ (60.96cm)
