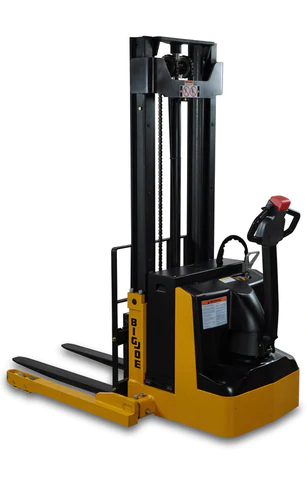

PDS25 Big Joe
2,500lb. capacity models with lift heights to 157″
An easy to use and maintain truck that is a good choice for general material handling, stacking and work positioning in tight areas.
• 24 volt ZAPI transistor control
• High torque AC drive motor.
• Double reduction helical ZF GK10 transmission
• Shaft mounted electromechanical brake
• Creep speed operation for tight turning in close quarters
• Ergonomic handle with safety reversing switch and horn
• 224AH Maintenace free battery pack with integral charger
• Battery discharge indicator with hour meter
• Key switch to limit access to approved personnel
Vehicle Type: Walkie Straddle Stacker
Capacity: 2,500lbs
Power: 24 volt AC electric with ZAPI transistor control-inverter
Max Lift Height: 157″
Fork Dimensions: 42″ L x 4″ W x 1.5″ Thick
Vehicle Dimensions: 64.5″ OAL x 44″ OAW
Turning Radius: 60.7″
Travel Speed: Programmable with optional handset (0-3.7mph empty / 0-2.9mph loaded)
Battery Compartment: 26.37” x 9.06” x OPEN
Battery Capacity: 224AH Maintenace free battery pack
Charger: Integral to pack, 110v plug-in
