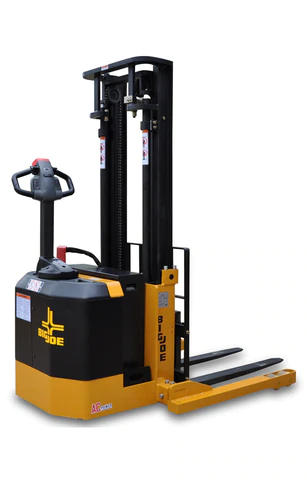

PDS30-40 Big Joe

3,000lb and 4,000lb capacity models with lift heights to 177″

An easy-to-use and maintain truck that is a good choice for warehouse operations and other environments where space is limited.

• 24volt ZAPI transistor control

• High torque AC drive motor.

• Double reduction helical ZF GK10 transmission

• Shaft mounted electromechanical brake

• Creep speed operation for tight turning in close quarters

• Ergonomic handle with safety reversing switch and horn

• 224 AH Maintenace free battery pack

• Battery discharge indicator with hour meter

• Key switch to limit access to approved personnel

Vehicle Type: Walkie Straddle Stacker

Capacity: 3,000-4,000lbs

Power: 24 volt AC electric with ZAPI transistor control-inverter

Max Lift Height: 177″

Fork Dimensions: 42″ L x 4″ W x 1.5″ Thick

Travel Speed: Programmable with optional handset (0-3.7mph empty / 0-2.9mph loaded)

Battery Compartment: 26.37” x 9.06” x OPEN

Battery Capacity: 224AH Maintenace free battery pack

Charger: Integral to pack, 110v plug-in
