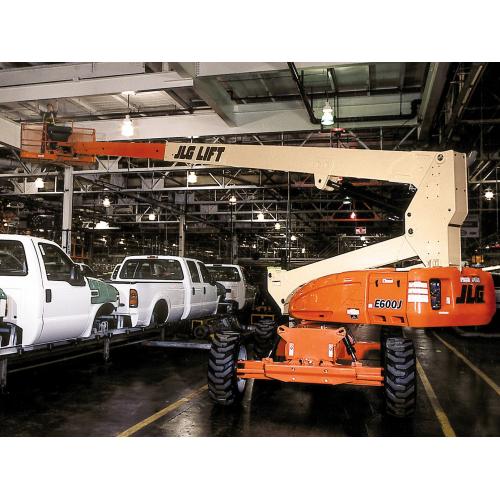

E600J JLG

Details

  • Highest electric boom in the industry
  • Environmentally friendly – zero emissions, reduced noise and standard non-marking tires
  • Maneuverability – move over uneven surfaces with Automatic Traction Control
  • Productivity – work longer with longer duty cycles

Power Source

Batteries

8 x 6V, 415 amp-hr

Electrical System

48 Volts DC

Performance

Drive Speed Platform Lowered

3 mph / 4.83 km/h

Gradeability Wd

30 %

Platform Capacity

500 lb / 226.80 kg

Swing

400 Degrees

Swing Type

Non-Continuous

Turning Radius Outside

15 ft 4 in. / 4.67 m

Jib Range Of Articulation

145 Degrees

Dimensional Data

Ground Clearance

1 ft / 0.3 m

Machine Height

8 ft 4 in. / 2.54 m

Machine Length

30 ft 9 in. / 9.37 m

Machine Width

7 ft 11 in. / 2.41 m

Platform Dimension A

2 ft 6 in. / 0.76 m

Platform Dimension B

6 ft / 1.83 m

Platform Height

60 ft 3 in. / 18.36 m

Tailswing

4 ft / 1.22 m

Tire Size

36 x 14-22.5 Non-marking Pnuematic

Wheelbase

9 ft / 2.74 m

Reach Specifications

Horizontal Jib Rotation

0 Degrees

Horizontal Outreach

43 ft 3 in. / 13.18 m

Platform Height

60 ft 3 in. / 18.36 m

General

Capacity Hydraulic Reservoir

15 gal. / 56.78 L

Machine Weight

15200 lb / 6894.60 kg
