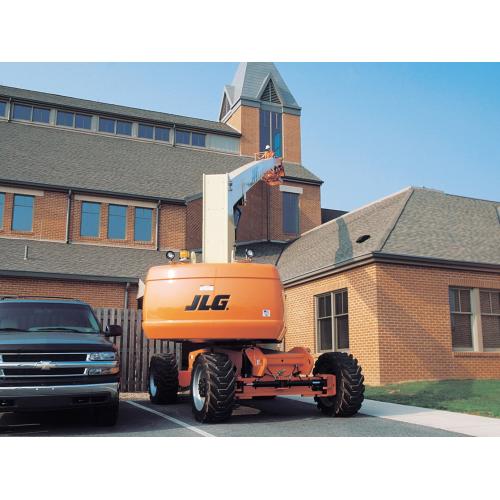

800S JLG

Details

  • Reach full elevation in less than 70 seconds
  • Advanced Design Electronics System reduces your costs by increasing fuel efficiency and reducing emissions
  • Equipped with a fuel-efficient Tier 4 engine

Power Source

Auxiliary Power

12 Volts DC

Capacity Fuel Tank

31 gal. / 117.35 L

Engine Type Diesel

DEUTZ TD 2.9L Tier 4 Final 67 hp

Engine Type Dual Fuel

GM Vortec 3000 MPFI 82 hp (61 kW)

Performance

Axle Oscillation

8 in. / 0.2 m

Drive Speed Wd

3.50 mph / 5.63 km/h

Gradeability Wd

30 %

Platform Capacity Restricted

1000 lb / 453.59 kg

Platform Capacity Unrestricted

500 lb / 226.80 kg

Swing

360 Degrees

Swing Type

Continuous

Turning Radius Outside

22 ft 6 in. / 6.86 m

Jib Range Of Articulation

0 Degrees

Dimensional Data

Ground Clearance

1 ft / 0.3 m

Machine Height

9 ft 11 in. / 3.02 m

Machine Length

37 ft 3 in. / 11.35 m

Machine Width

8 ft 2 in. / 2.49 m

Platform Dimension A

3 ft / 0.91 m

Platform Dimension B

8 ft / 2.44 m

Platform Height

80 ft / 24.38 m

Tailswing

4 ft 8 in. / 1.42 m

Tire Size

15-625 Pnuematic

Reach Specifications

Horizontal Jib Rotation

0 Degrees

Horizontal Outreach

71 ft / 21.64 m

Platform Height

80 ft / 24.38 m

General

Capacity Hydraulic Reservoir

48 gal. / 181.70 L

Machine Weight

33200 lb / 15059.27 kg
