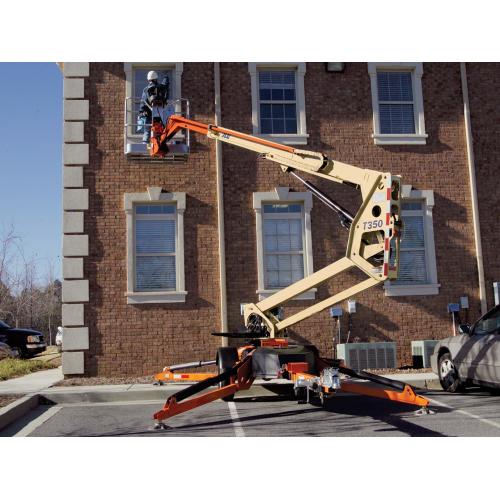

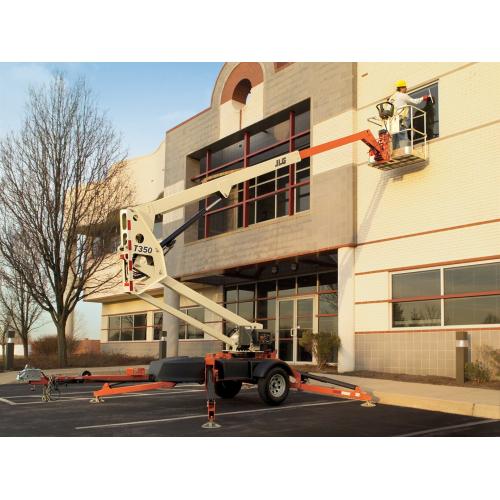

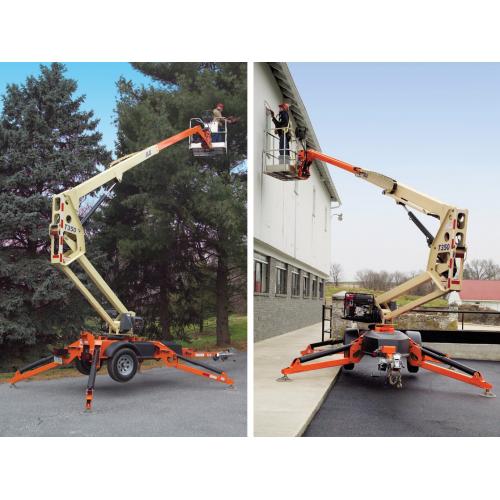

T350 JLG
Details
- Gasoline engine or 24V DC electric power
- Standard air and water lines to platform
- Accessory Mounting Tray accommodates your generator, air compressor or pressure washer
Power Source
Batteries
4 x 6V 220 amp-hr
General
Capacity Hydraulic Reservoir
4 gal. / 15.14 L
Machine Weight
3400 lb / 1542.21 kg
Performance
Frame Leveling
11 Degrees
Leveling Capability
11 Degrees
Outriggers Or Stabilizers
Yes
Platform Capacity
500 lb / 226.80 kg
Swing
410 Degrees
Swing Type
Non-Continuous

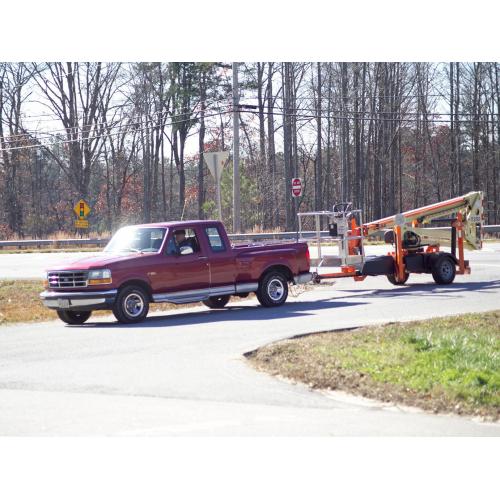

Towing Speed Rating
65 mph / 104.61 km/h
Jib Range Of Articulation
0 Degrees
Dimensional Data
Ground Clearance
1 ft 2 in. / 0.36 m
Ground Entry Height
10 in. / 0.25 m
Machine Height
6 ft 6 in. / 1.98 m
Machine Length
21 ft 9 in. / 6.63 m
Machine Width
4 ft 9 in. / 1.45 m
Outrigger Footprint Length
11 ft 7 in. / 3.53 m
Outrigger Footprint Width
10 ft 5 in. / 3.18 m
Platform Dimension A
2 ft 6 in. / 0.76 m
Platform Dimension B
4 ft / 1.22 m
Platform Height
34 ft 5 in. / 10.49 m
Tire Size
205/75 R14 Pnuematic
Reach Specifications
Horizontal Outreach
20 ft 2 in. / 6.15 m
Platform Height
34 ft 5 in. / 10.49 m
Up And Over Height
15 ft / 4.57 m
