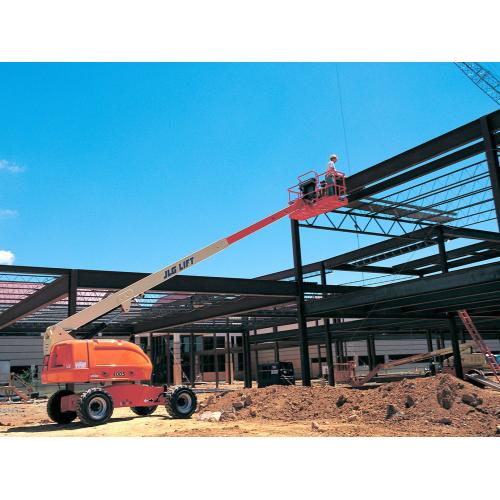

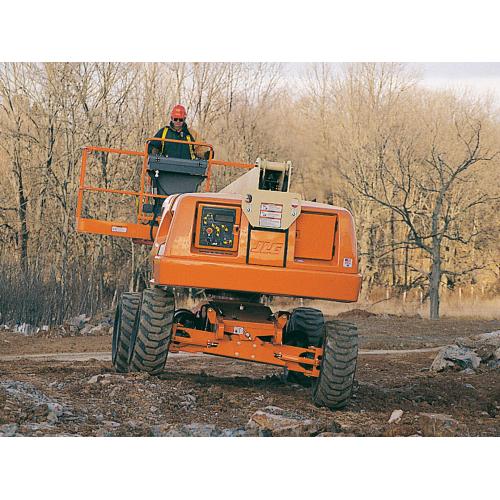

400S JLG

Details

  • Improved multifunction capability increases productivity

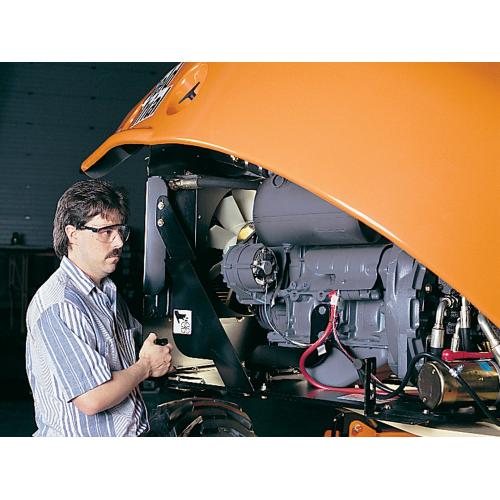

  • More durability and serviceability thanks to the new DuraTough hood design
  • Larger capacity of 600 lb

Power Source

Auxiliary Power

12 Volts DC

Capacity Fuel Tank

22 gal. / 83.28 L

Engine Type Diesel

Deutz D2.9L4 Tier 4 Final 49 hp 36.4 kW

Engine Type Dual Fuel

GM Vortec 3000 MPFI 82 hp 61 kW

Performance

Drive Speed Wd

4.50 mph / 7.24 km/h

Gradeability Wd

45 %

Platform Capacity Restricted

1000 lb / 453.59 kg

Platform Capacity Unrestricted

600 lb / 272.16 kg

Swing

360 Degrees

Swing Type

Continuous

Turning Radius Outside

15 ft 11 in. / 4.84 m

Dimensional Data

Ground Clearance

1 ft / 0.31 m

Machine Height

8 ft 1 in. / 2.47 m

Machine Length

24 ft 10 in. / 7.57 m

Transport Length

24 ft 10 in. / 7.57 m

Machine Width

7 ft 7 in. / 2.31 m

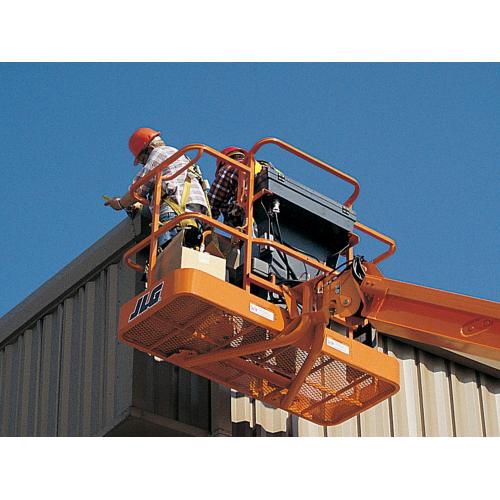

Platform Dimension A

3 ft / 0.91 m

Platform Dimension B

8 ft / 2.44 m

Platform Height

40 ft / 12.19 m

Tire Size

12 x 16.5 Pneumatic Lug Tread Tires

Reach Specifications

Horizontal Jib Rotation

0 Degrees

Horizontal Outreach

33 ft 3 in. / 10.13 m

Platform Height

40 ft / 12.19 m

General

Capacity Hydraulic Reservoir

36 gal. / 136.27 L

Machine Weight

13640 lb / 6187 kg
