Details
  • Much faster to full height

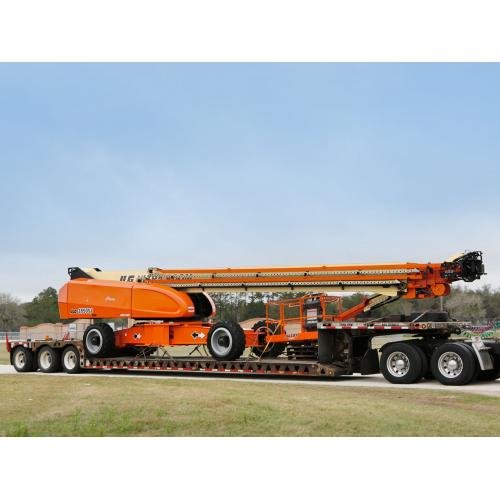

  • No oversized load permit needed (over weight permit is required for highway transportation)
  • Telescoping jib provides 2.9 million cubic feet of work area

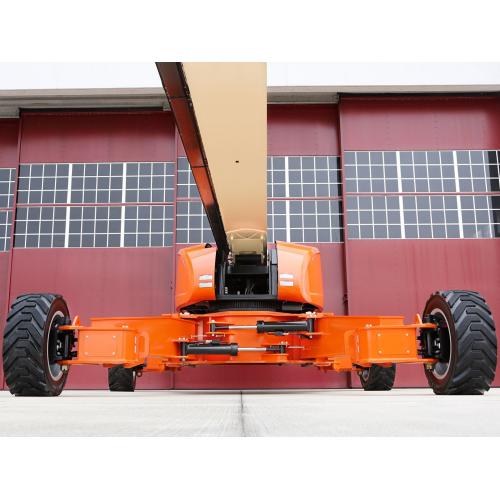

  • Axles take approximately one minute to extend or retract

Power Source

Auxiliary Power

12 Volts DC

Capacity Fuel Tank

53 gal. / 199.87 L

Engine Type Diesel

Deutz TD3.6L 99.8 HP

Performance

Drive Speed Wd

2.80 mph / 4.51 km/h

Gradeability Wd

40 %

Platform Capacity Restricted

1000 lb / 453.59 kg

Platform Capacity Unrestricted

500 lb / 226.80 kg

Swing

360 Degrees

Swing Type

Continuous

Turning Radius Outside Axles Extended

21 ft 8 in. / 6.6 m

Turning Radius Outside Axles Retracted

31 ft 3 in. / 9.53 m

Jib Range Of Articulation

120 Degrees

Dimensional Data

Ground Clearance

1 ft 4 in. / 0.41 m

Machine Height

10 ft / 3.05 m

Machine Length

63 ft 10 in. / 19.44 m

Transport Length

47 ft 10 in. / 14.57 m

Machine Width

8 ft 2 in. / 2.49 m

Overall Width Axles Extended

16 ft 6 in. / 5.03 m

Platform Dimension A

3 ft / 0.91 m

Platform Dimension B

8 ft / 2.44 m

Platform Height

185 ft 7 in. / 56.57 m

Tailswing

7 ft 7 in. / 2.31 m

Tire Size

445/50D710 Foam Filled

Reach Specifications

Horizontal Outreach

80 ft / 24.38 m

Platform Height

185 ft 7 in. / 56.57 m

General

Capacity Hydraulic Reservoir

75 gal. / 284.28 L

Machine Weight

60300 lb / 27351.62 kg
