Details

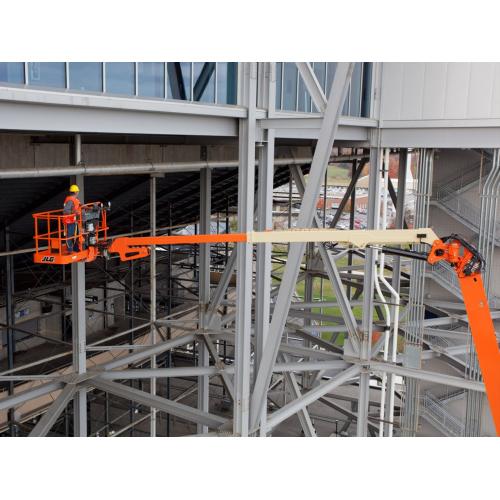

  • Telescoping jib provides work envelope flexibility and even more outreach at elevation

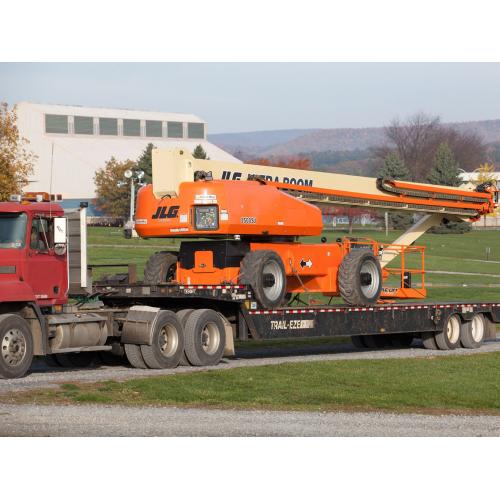

  • Ease of transport – no oversized load permit needed (over weight permit is required for highway transportation)
  • Strong 100,000-psi steel and a dual 1,000 / 500 lb capacity

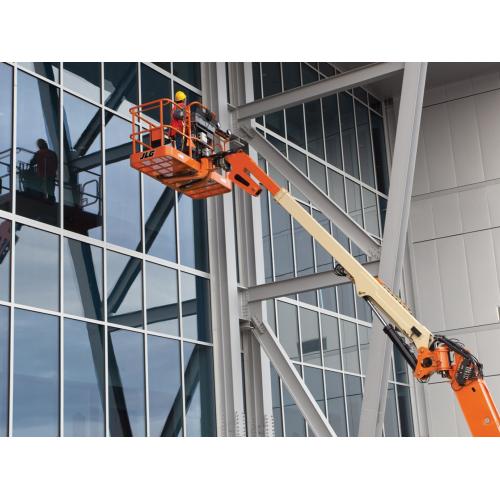

  • Ideal for general contractors, glaziers, window cleaners, welders and more

Power Source

Auxiliary Power

12 Volts DC

Capacity Fuel Tank

31 gal. / 117.35 L

Engine Type Diesel

DEUTZ TCD2.9L4 Tier 4 Final 74.2 hp

Performance

Axle Oscillation

1 ft / 0.3 m

Drive Speed Wd

3 mph / 4.83 km/h

Gradeability Wd

40 %

Platform Capacity Restricted

1000 lb / 453.59 kg

Platform Capacity Unrestricted

500 lb / 226.80 kg

Swing

360 Degrees

Swing Type

Continuous

Turning Radius Outside Axles Extended

19 ft 4 in. / 5.89 m

Turning Radius Outside Axles Retracted

22 ft 6 in. / 6.86 m

Jib Range Of Articulation

120 Degrees

Dimensional Data

Ground Clearance

1 ft / 0.3 m

Machine Height

10 ft / 3.05 m

Machine Length

61 ft 9 in. / 18.81 m

Machine Width

8 ft 2 in. / 2.49 m

Overall Width Axles Extended

12 ft 6 in. / 3.81 m

Transport Length

43 ft / 13.11 m

Platform Dimension A

3 ft / 0.91 m

Platform Dimension B

8 ft / 2.44 m

Platform Height

150 ft / 45.72 m

Tailswing

5 ft 6 in. / 1.68 m

Tire Size

445/500710 Foam-Filled

Reach Specifications

Horizontal Jib Rotation

0 Degrees

Horizontal Outreach

80 ft / 24.38 m

Platform Height

150 ft / 45.72 m

General

Capacity Hydraulic Reservoir

55 gal. / 208.20 L

Machine Weight

48000 lb / 21772.43 kg
