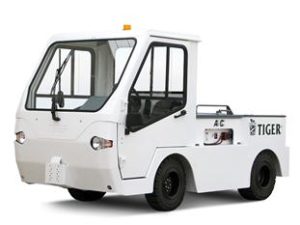

TC-50E Taylor Dunn

Description

The TC-50E is an 80 volt  AC powered electric tow tractor that has 3,000-5,000 pounds (1,361 to 2,268 kgs) of drawbar pull. With its low profile and compact design, the TC-50E AC provides excellent visibility and ergonomics for optimal driving capability. The tractor provides steel unibody frame construction for durability and reliability.

Model

TC-50E

Type

Electric

Speed

15 mph (24.1 km/h)

Range

30 Miles (48 km)

Load Capacity

N/A

Tow Capacity

Tow Capacity: 60,000 lbs. (27,215 kg)

People

2

Description

This tractor is equipped with a Parallel Motor drive axle, 26.8 hp motor and travels at 15 miles per hour. Four-wheel hydraulic braking system and hydrostatic power steering, coupled with 144 inch turning radius make this vehicle a highly maneuverable machine. The TC-50E is equipped with rear control buttons for inching up to intended loads.

Options

Enclosed steel cab with locking doors, side view mirrors and strobe light.

Steel Cab

PA System



Performance

Speed

15 mph (24.1 km/h)

Range

30 Miles (48 km)

Load Capacity

N/A

Tow Capacity

Tow Capacity: 60,000 lbs. (27,215 kg)

Passengers

2

Dimensions

Weight

5000 lbs (2273 kg) Less battery

Length

136.1″ (345.7cm)

Width

56.2″ (142.6cm)

Height

Less Cab: 55″ (139.7cm) With Cab: 74.6″ (189.5cm)

Hitch Height

13.5″ (34.3cm)

Outside Turn Radius

144″ (365.8cm)

Deck

Width: N/A Length: N/A Height: N/A

Chassis

Interior
