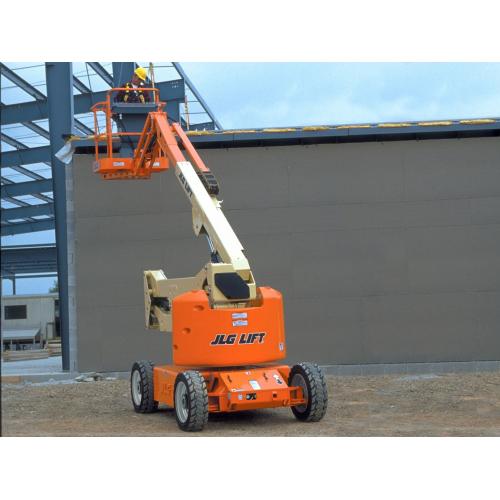

E450A JLG

Details
  • Accessibility – up and over access, optional jib
  • Maneuverability – move over uneven surfaces with Automatic Traction Control
  • Productivity – work longer with longer duty cycles
  • Environmentally friendly – zero emissions

Power Source

Batteries

8 x 6V, 370 amp-hr

Electrical System

48 Volts DC

Performance

Drive Speed Platform Lowered

3.20 mph / 5.15 km/h

Gradeability Wd

30 %

Platform Capacity

500 lb / 226.80 kg

Platform Capacity Unrestricted

500 lb / 226.80 kg

Swing

360 Degrees

Swing Type

Non-Continuous

Turning Radius Outside

10 ft 4 in. / 3.15 m

Jib Range Of Articulation

0 Degrees

Dimensional Data

Ground Clearance

9 in. / 0.22 m

Machine Height

6 ft 6 in. / 1.98 m

Machine Length

19 ft 1 in. / 5.82 m

Machine Width

5 ft 9 in. / 1.75 m

Platform Dimension A

2 ft 6 in. / 0.76 m

Platform Dimension B

5 ft / 1.52 m

Platform Height

45 ft / 13.72 m

Tailswing

Zero

Tire Size

240/55-17.5 Pnuematic

Wheelbase

6 ft 7 in. / 2.01 m

Reach Specifications

Horizontal Jib Rotation

0 Degrees

Horizontal Outreach

23 ft 1 in. / 7.04 m

Platform Height

45 ft / 13.72 m

Up And Over Height

24 ft 7 in. / 7.49 m

General

Capacity Hydraulic Reservoir

4 gal. / 15.14 L

Machine Weight

12600 lb / 5715.26 kg
