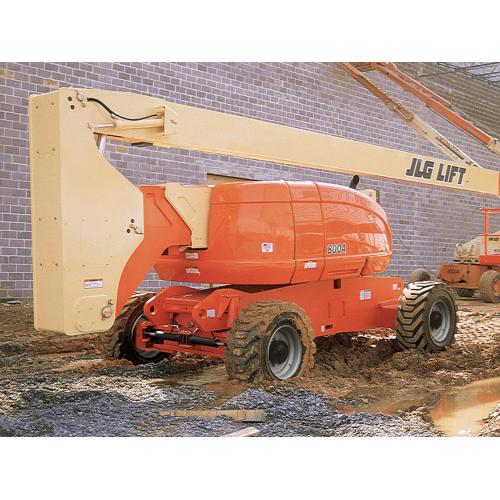

800A JLG

Details
  • Get the extra reach and versatility you need with the best reach envelope in the industry
  • With Workstation in the Sky®  accessories, you will have all you need to get the job done
  • Advanced Design Electronics System reduces your costs by increasing your fuel efficiency and reducing emissions

Power Source

Auxiliary Power

12 Volts DC

Capacity Fuel Tank

39 gal. / 147.63 L

Engine Type Diesel

DEUTZ TD 2.9L Tier 4 Final 67 hp

Engine Type Dual Fuel

GM Vortec 3000 MPR, 82 hp

Performance

Axle Oscillation

0 in. / 0 mm

Drive Speed Wd

3 mph / 4.83 km/h

Gradeability Wd

30 %

Platform Capacity Restricted

1000 lb / 453.59 kg

Platform Capacity Unrestricted

500 lb / 226.80 kg

Swing

360 Degrees

Swing Type

Continuous

Turning Radius Outside Ws

22 ft 6 in. / 6.86 m

Jib Range Of Articulation

0 Degrees

Dimensional Data

Ground Clearance

1 ft / 0.3 m

Machine Height

9 ft 10 in. / 3 m

Machine Length

36 ft 11 in. / 11.25 m

Machine Width

8 ft 2 in. / 2.49 m

Platform Dimension A

3 ft / 0.91 m

Platform Dimension B

8 ft / 2.44 m

Platform Height

80 ft / 24.38 m

Tailswing

2 ft 6 in. / 0.76 m

Tire Size

18 x 19.5 Wide Lug Tread

Reach Specifications

Horizontal Jib Rotation

0 Degrees

Horizontal Outreach

53 ft / 16.15 m

Platform Height

80 ft / 24.38 m

Up And Over Height

32 ft 1 in. / 9.78 m

General

Capacity Hydraulic Reservoir

40 gal. / 151.42 L

Machine Weight

34300 lb / 15558.22 kg
