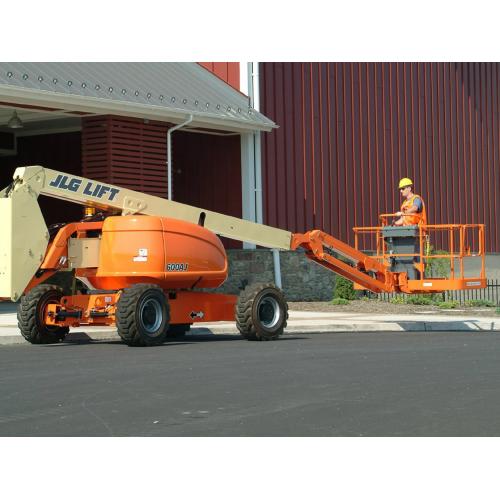

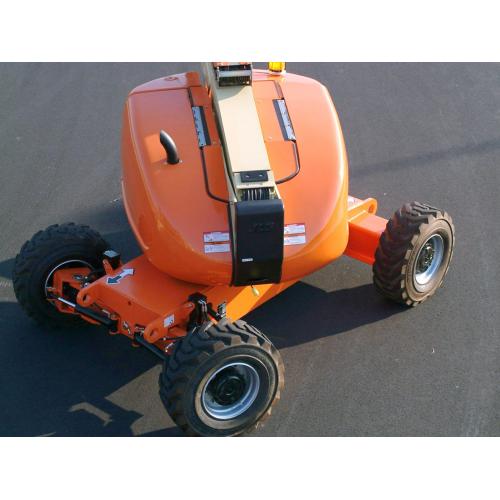

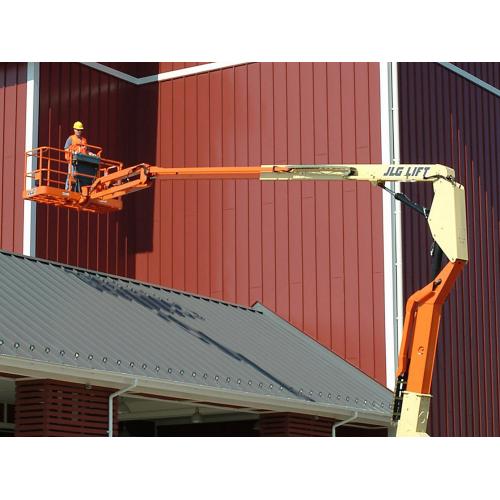

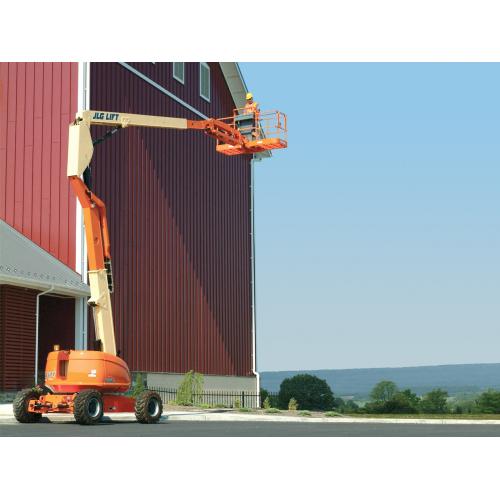

600AJ JLG

Details

  • Best reach envelope in its class
  • Optional articulating jib gets you into hard-to-reach places
  • Unmatched maneuverability for confined work areas
  • Equipped with a fuel-efficient Tier 4 engine

Power Source

Auxiliary Power

12 Volts DC

Capacity Fuel Tank

30 gal. / 113.56 L

Engine Type Diesel

DEUTZ TD 2.9L Tier 4 Final 67 hp

Engine Type Dual Fuel

GM Vortec 3000 MPR, 82 hp

Performance

Axle Oscillation

8 in. / 0.2 m

Drive Speed Wd

4.25 mph / 6.84 km/h

Gradeability Wd

30 %

Platform Capacity Unrestricted

500 lb / 226.80 kg

Swing

360 Degrees

Swing Type

Continuous

Turning Radius Outside Ws

17 ft 8 in. / 5.38 m

Jib Range Of Articulation

130 Degrees

Dimensional Data

Ground Clearance

1 ft / 0.29 m

Machine Height

8 ft 4 in. / 2.54 m

Machine Length

29 ft / 8.83 m

Machine Width

8 ft 2 in. / 2.49 m

Platform Dimension A

3 ft / 0.91 m

Platform Dimension B

8 ft / 2.44 m

Platform Height

60 ft 7 in. / 18.47 m

Tailswing

Zero

Tire Size

IN355/55D-6.25 Low Profile

Reach Specifications

Horizontal Jib Rotation

0 Degrees

Horizontal Outreach

39 ft 9 in. / 12.12 m

Platform Height

60 ft 7 in. / 18.47 m

Up And Over Height

26 ft 7 in. / 8.1 m

General

Capacity Hydraulic Reservoir

31 gal. / 115.83 L

Machine Weight

22740 lb / 10314.69 kg
