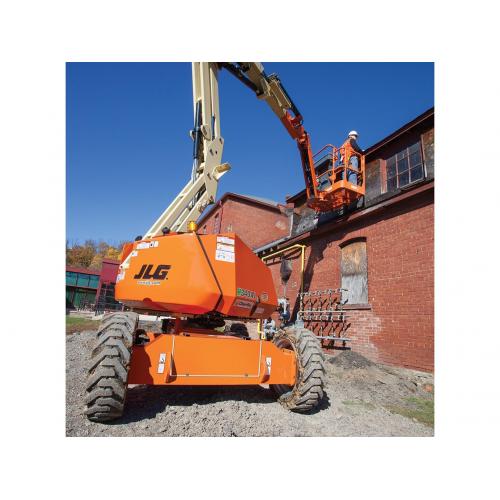

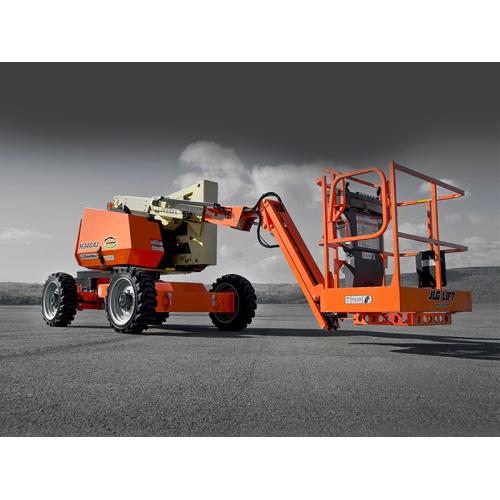

H340AJ Hybrid JLG

Details

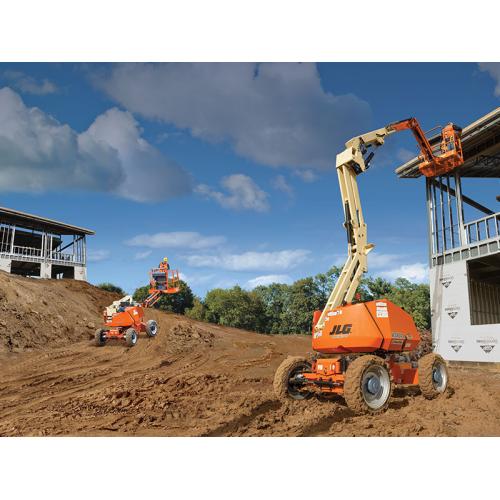

  • Diesel-like performance – Four independent electric-drive motors and a Tier 4 Final diesel-powered generator provide exceptional terrainability on par with its diesel counterpart

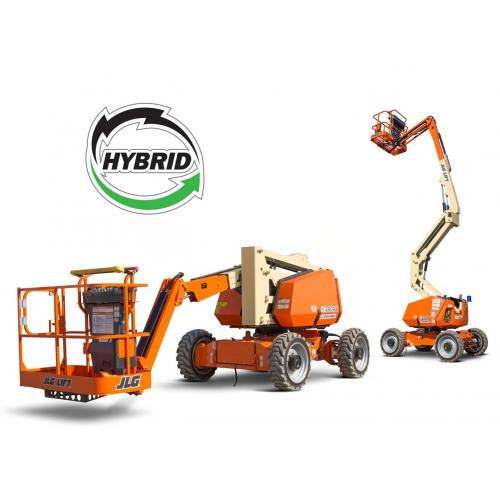

  • Hybrid technology – Runs completely on 8 x 12v 100 amp-hour AGM batteries, which are charged by the diesel generator

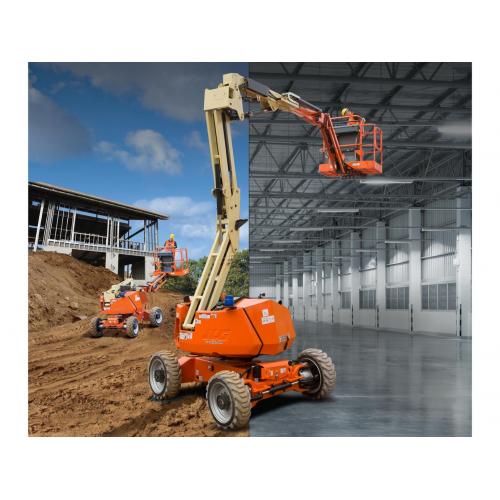

  • Versatility – The power of a diesel machine combined with hybrid efficiency allows you to work both inside and outside
  • Low emissions – Experience reduced fuel use*, emissions, noise and maintenance

Power Source

Batteries

8 x 12V, 100 Amp-Hour

Electrical System

48 Volts DC

Generator Engine Brand

Kubota

Generator Engine Fuel Tank Capacity

13 gal. / 49.21 L

Generator Engine Fuel Type

Diesel

Generator Engine Horsepower Kilowatts

11 hp / 8.28 kW

Performance

Drive Speed Platform Lowered

3.70 mph / 5.95 km/h

Gradeability Wd

45 %

Platform Capacity

500 lb / 226.80 kg

Swing

355 Degrees

Swing Type

Non-Continuous

Turning Radius Outside

13 ft / 3.96 m

Jib Range Of Articulation

139 Degrees

Dimensional Data

Ground Clearance

10 in. / 0.26 m

Machine Height

6 ft 7 in. / 2.01 m

Machine Length

18 ft 2 in. / 5.54 m

Machine Width

6 ft 4 in. / 1.93 m

Platform Dimension A

2 ft 6 in. / 0.76 m

Platform Dimension B

5 ft / 1.52 m

Platform Height

33 ft 9 in. / 10.29 m

Tailswing

2 in. / 0.05 m

Tire Size

265/50 D20

Wheelbase

6 ft 2 in. / 1.88 m

Reach Specifications

Horizontal Jib Rotation

0 Degrees

Horizontal Outreach

19 ft 11 in. / 6.07 m

Platform Height

33 ft 9 in. / 10.29 m

Up And Over Height

17 ft / 5.18 m

General

Capacity Hydraulic Reservoir

21 gal. / 77.98 L

Machine Weight

9860 lb / 4472.42 kg
