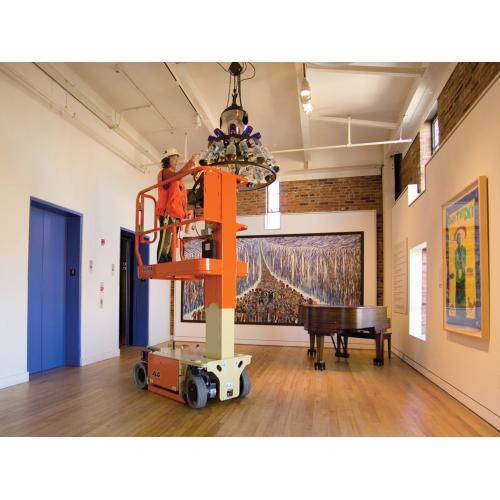

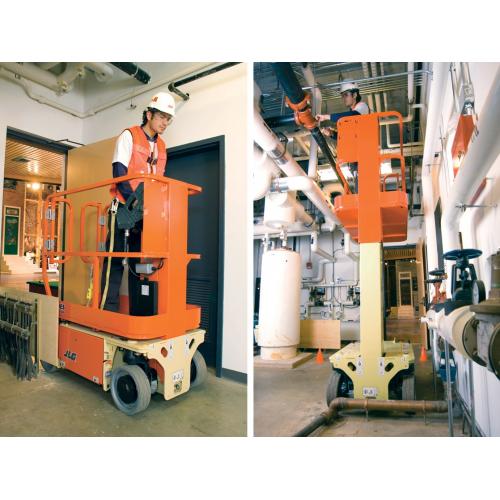

1230ES JLG

Details

  • Low maintenance, energy efficient and environmentally clean
  • Longer running time than any lift in its class keeps you on the job longer, increasing your productivity
  • Lightweight design for transport in freight elevators

Dimensional Data

Ground Clearance

3 in. / 0.08 m

Ground Entry Height

1 ft 10 in. / 0.56 m

Machine Height

5 ft 5 in. / 1.65 m

Machine Length

4 ft 6 in. / 1.37 m

Machine Width

2 ft 6 in. / 0.76 m

Platform Dimension A

4 ft 2 in. / 1.26 m

Platform Dimension B

2 ft 3 in. / 0.69 m

Platform Height

12 ft / 3.66 m

Tire Size

100 x 323 (Solid, non-marking)

Reach Specifications

Platform Height

12 ft / 3.66 m

Working Height

18 ft / 5.49 m

Performance

Drive Speed Platform Elevated

0.50 mph / 0.80 km/h

Drive Speed Platform Lowered

3 mph / 4.83 km/h

Drive System

24V Electric, 8 hp

Gradeability

25 %

Maximum Drive Height

12 ft / 3.66 m

Maximum Lift Height

12 ft / 3.66 m

Platform Capacity

500 lb / 226.80 kg

General

Machine Weight

1740 lb / 789.25 kg

Power Source

Batteries

4 x 6V, 220 amp-hr
