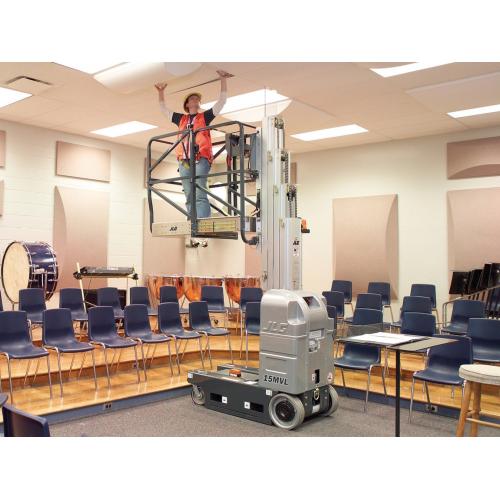

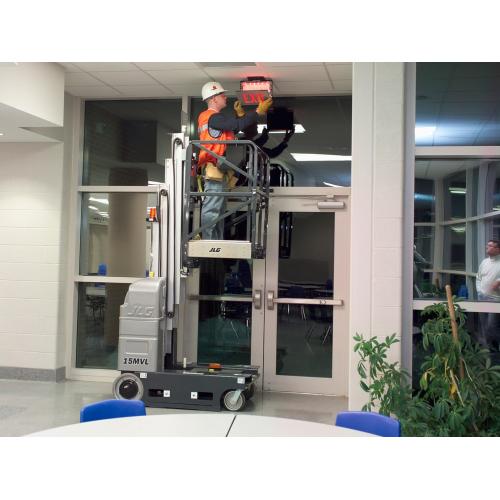

15MVL JLG

Details

  • Five platform options with exclusive “Quick Change” mountings for one-minute change-outs
  • Exclusive Point & Go® single joystick control operates drive and steer, and lift and lower
  • Rigid mast for operator comfort and stability

Dimensional Data

Wheel Size Front Caster

8 x 2.5″

Ground Clearance

2 in. / 0.05 m

Ground Entry Height

1 ft 7 in. / 0.48 m

Machine Height

6 ft 6 in. / 1.98 m

Machine Length

4 ft 6 in. / 1.36 m

Machine Width

2 ft 6 in. / 0.75 m

Platform Dimension A

2 ft 2 in. / 0.66 m

Platform Dimension B

2 ft 4 in. / 0.71 m

Platform Height

15 ft 4 in. / 4.67 m

Wheel Size Rear

12.62 x 4″

Reach Specifications

Platform Height

15 ft 4 in. / 4.67 m

Working Height

21 ft 4 in. / 6.5 m

Performance

Drive Speed Platform Elevated

0.60 mph / 0.97 km/h

Drive Speed Platform Lowered

3.50 mph / 5.63 km/h

Drive System

4 Brush Direct Electric

Gradeability

20 %

Maximum Drive Height

15 ft 4 in. / 4.67 m

Maximum Lift Height

15 ft / 4.66 m

Platform Capacity

500 lb / 226.80 kg

General

Machine Weight

2325 lb / 1054.60 kg

Power Source

Batteries

Two Sealed 100 AH 12 Volt
