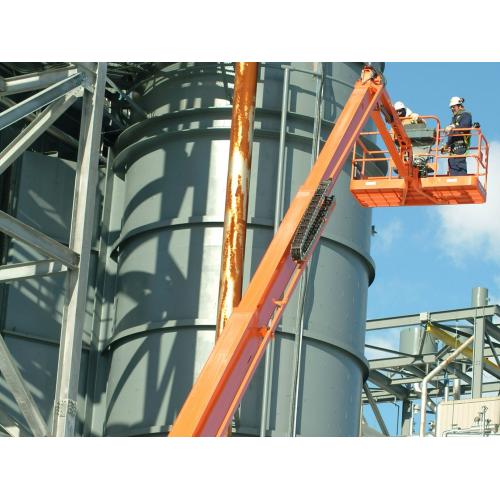

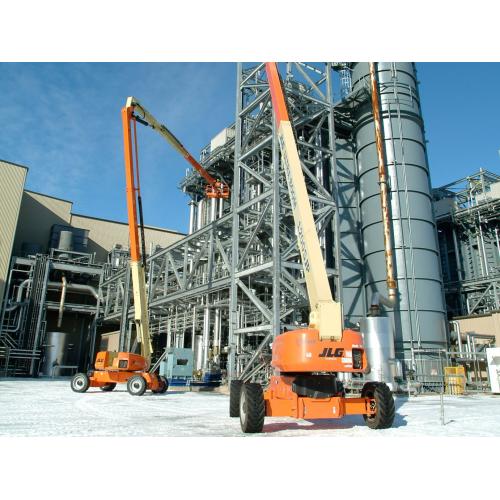

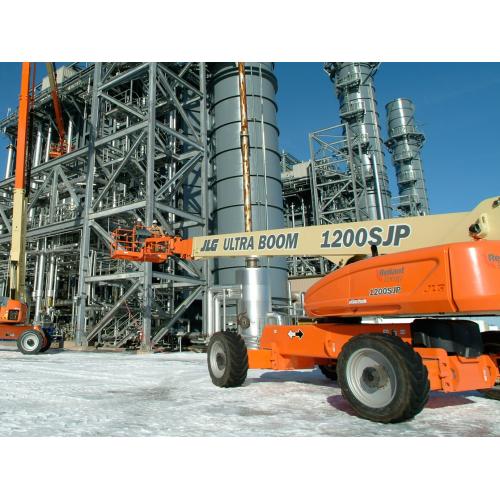

1200SJP JLG
Details
- Ground to 120 ft up in 95 seconds
- Stability and capacity from 100,000-psi steel and a dual 1,000 / 500 lb capacity
- Equipped with a fuel-efficient Tier 4 engine
Power Source
Auxiliary Power
12 Volts DC
Capacity Fuel Tank
31 gal. / 117.35 L
Engine Type Diesel
DEUTZ TCD2.9L4 Tier 4 Final 74.2 hp
Performance
Axle Oscillation
1 ft / 0.3 m
Drive Speed Wd
3.25 mph / 5.23 km/h
Gradeability Wd
45 %
Platform Capacity Restricted
1000 lb / 453.59 kg
Platform Capacity Unrestricted
500 lb / 226.80 kg
Swing
360 Degrees
Swing Type
Continuous
Turning Radius Outside Axles Extended
19 ft 4 in. / 5.89 m
Turning Radius Outside Axles Retracted
22 ft 6 in. / 6.86 m
Jib Range Of Articulation
130 Degrees
Dimensional Data
Ground Clearance
1 ft / 0.3 m
Machine Height
10 ft / 3.05 m
Machine Length
44 ft 10 in. / 13.67 m
Machine Width
8 ft 2 in. / 2.49 m
Overall Width Axles Extended
12 ft 6 in. / 3.81 m
Transport Length
34 ft 10 in. / 10.62 m
Platform Dimension A
3 ft / 0.91 m
Platform Dimension B
8 ft / 2.44 m
Platform Height
120 ft / 36.58 m
Tailswing
5 ft 6 in. / 1.68 m
Tire Size
445/500710 Foam-Filled
Reach Specifications
Horizontal Jib Rotation
180 Degrees
Horizontal Outreach
75 ft / 22.86 m
Platform Height
120 ft / 36.58 m
General
Capacity Hydraulic Reservoir
55 gal. / 208.20 L
Machine Weight
40900 lb / 18551.93 kg
