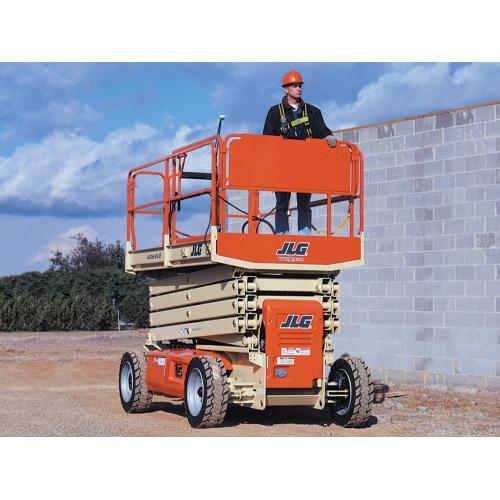

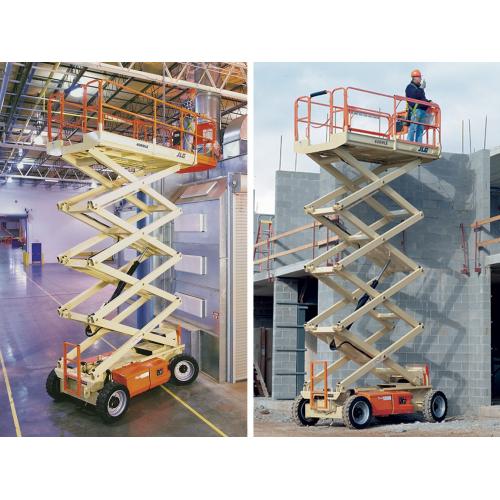

Details
  • Superior performance on or off slab
  • Rugged terrain tires take you anywhere you want to go
  • With optional hydraulic leveling jacks, uneven terrain is no problem
  • Double the duty cycle of other scissor lifts so you can stay on the job longer

Power Source

Batteries

8 x 6V, 370 amp-hr

Charger

21 Amp Automatic SCR

General

Brakes

Spring Applied Hyd Released Discs

Capacity Hydraulic Reservoir

9 gal. / 32.18 L

Hydraulic Pump

Single Section Gear Pump

Machine Weight

10560 lb / 4789.94 kg

Performance

Drive Speed Platform Elevated

0.40 mph / 0.64 km/h

Drive Speed Platform Lowered

3 mph / 4.83 km/h

Gradeability Wd

35 %

Lift Time

54 sec.

Lower Time

50 sec.

Maximum Drive Height

30 ft / 9.14 m

Maximum Lift Height

40 ft / 12.19 m

Outriggers Or Stabilizers

No

Platform Capacity

800 lb / 362.87 kg

Platform Capacity Extension

250 lb / 113.40 kg

Turning Radius Outside

15 ft 6 in. / 4.72 m

Dimensional Data

Ground Clearance

8 in. / 0.2 m

Machine Height

9 ft 3 in. / 2.81 m

Machine Height Rails Folded

6 ft 7 in. / 2.01 m

Machine Length

10 ft 4 in. / 3.15 m

Machine Width

5 ft 9 in. / 1.75 m

Platform Dimension A

9 ft 7 in. / 2.92 m

Platform Dimension B

5 ft 5 in. / 1.65 m

Platform Extension Length

3 ft / 0.91 m

Platform Height

40 ft / 12.19 m

Platform Height Lowered

5 ft 9 in. / 1.75 m

Platform Railing Height

3 ft 8 in. / 1.1 m

Tire Size

240/55 x 17.5 Non-Marking

Wheelbase

7 ft 7 in. / 2.3 m

Reach Specifications

Platform Height

40 ft / 12.19 m

Working Height

46 ft / 14.02 m
