SS-536 Taylor Dunn
Description
The SS-536 provides personnel transportation for executive, supervisors, security, maintenance, mail carriers and other workers whose jobs keeps them on the go.
Model
SS-536
Type
Electric
Speed
9 mph (14.4 km/h)
Range
20 miles (32 km)
Load Capacity
600 lbs. (272 kg.)
Tow Capacity
2,000 lbs. (909 kg)
People
2
Description

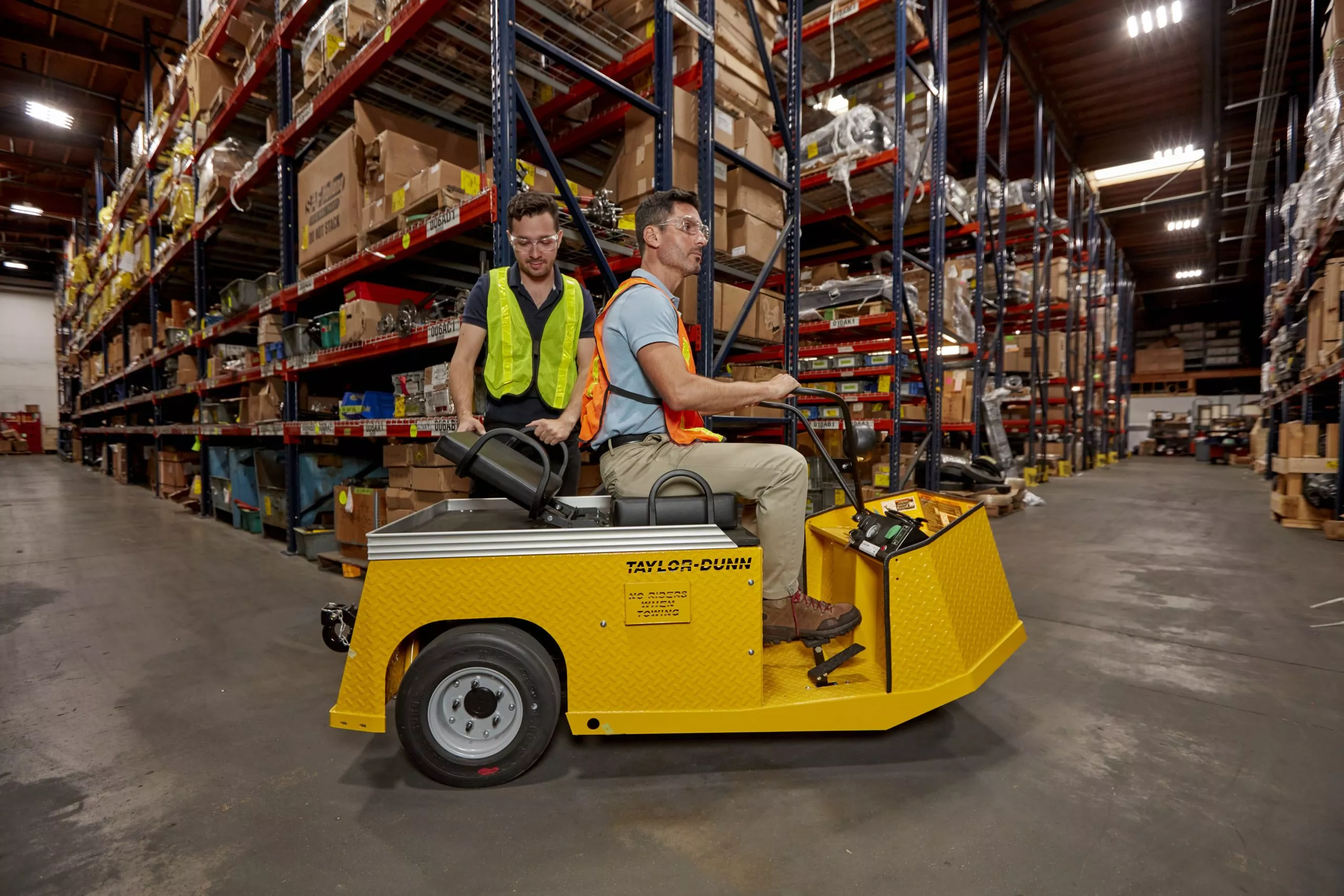

The versatile design of the SS-536 allows users to convert the vehicle from personnel carrier to burden carrier in a matter of seconds. This vehicle can carry up to two people or 600 lbs. of load on the job site. With its three wheel short turning radius design, The SS-536 can maneuver dependably around warehouses, industrial complexes, resorts, hotels, shopping malls, hospitals and other commercial complexes. Its all welded steel unitized body and frame is built to last for years of use. Modularized control system design provides ease of maintenance on all electrical systems. Tiller loop steering, 10 mph speed, and on-board charger provide safety, efficiency and convenience during daily operation.
Options
Charger
– Portable 25 amp charger
– Portable 40 amp charger 110V/220V
– Built in 110V/220V 50 Hz.
Accessories
– Strobe light, amber on pole
– Reverse buzzer
– Hour meter
Tires
– Soft solid tires
Deck
– Diamond plate deck
– Clipboard holder
Battery Compartment
– 244 a.h. batteries
– Lift out battery box
Frame
– Smooth skin
– Front bumper
– Geared steering
Color
– White or special paint color
– Undercoating
Performance
Speed
9 mph (14.4 km/h)
Range
20 miles (32 km)
Load Capacity
600 lbs. (272 kg.)
Tow Capacity
2,000 lbs. (909 kg)
Passengers
2
Dimensions
Weight
701 lbs. (309 kg.)
Length
86.5″ (219.7cm)
Width
30″ (76.2cm)
Height
Less Cab: 41.5″ (105.4cm) With Cab: N/A
Hitch Height
N/A
Outside Turn Radius
75″ (190.5cm)
Wheel Base
53.5″ (135.9cm)
Deck
Width: 30″ (76.2cm) Length: 19″ (48.3cm) Height: 24″ (60.96cm)
