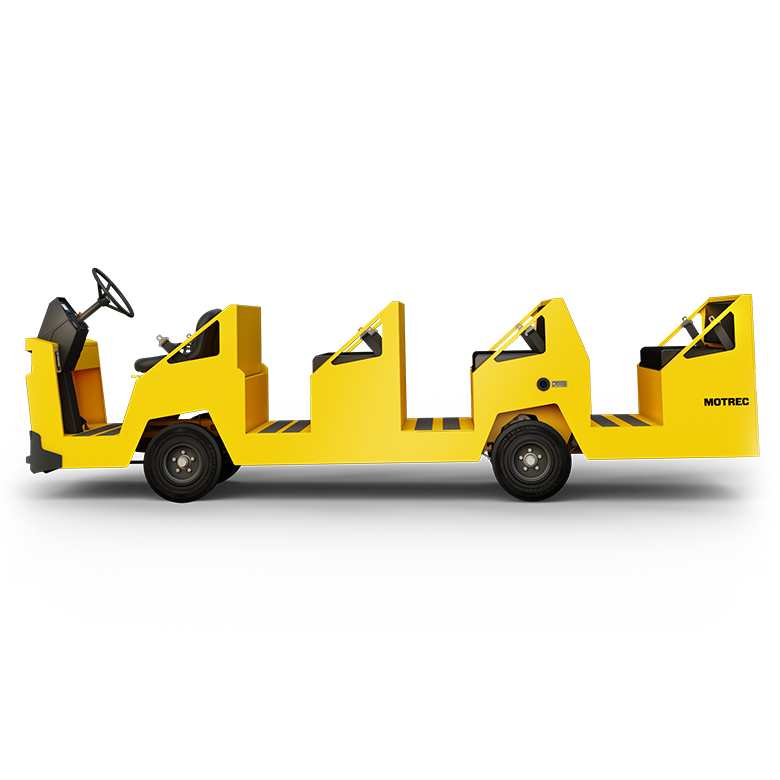

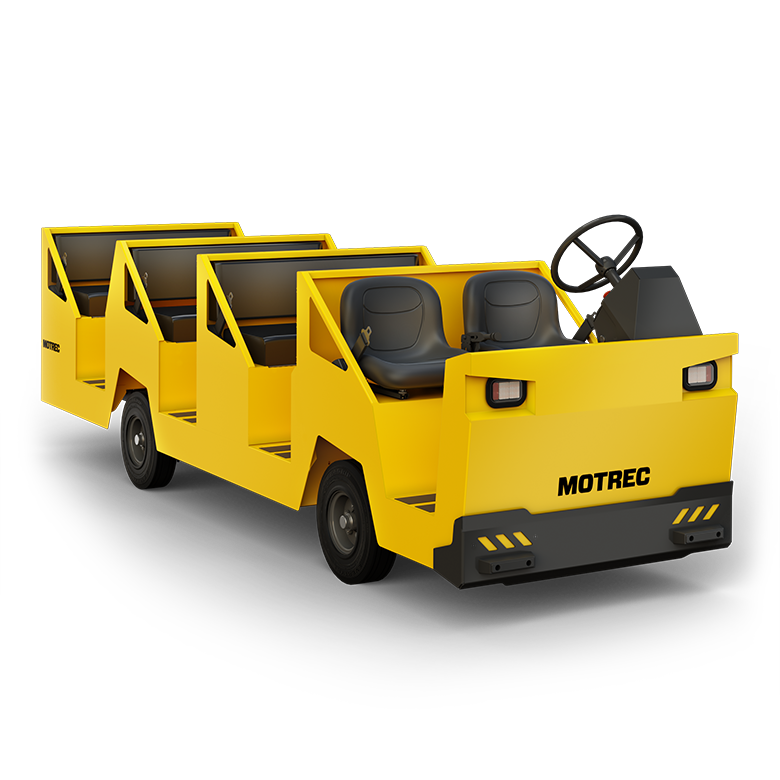

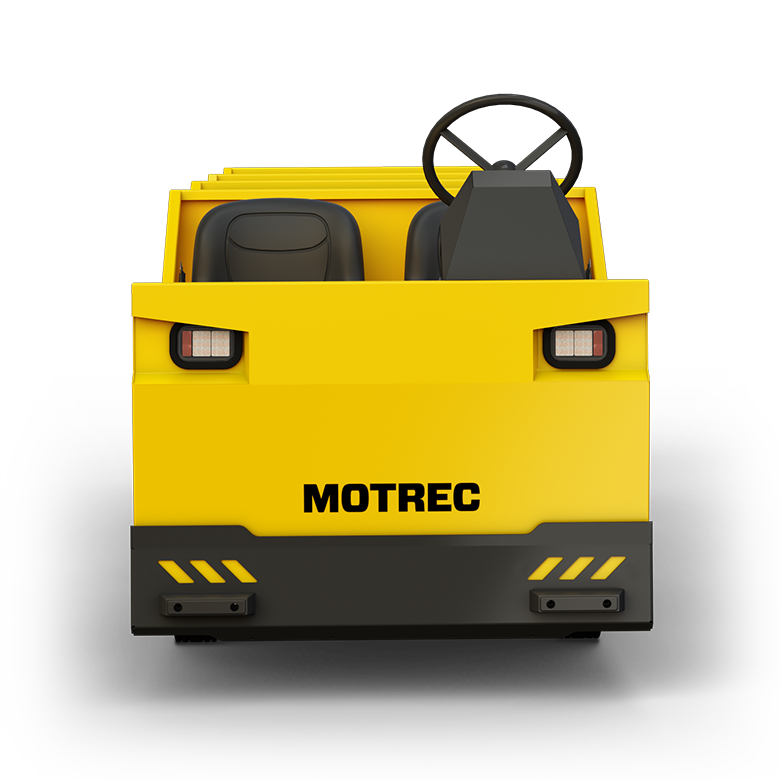

MP-500 11 passengers Motrec
- Code: MP - 500 - 11 passengers
- Passengers: 11
- Loading Capacity: 3000
- Towing Capacity: 6000
- Speed MPH: 10
- Speed KPH: 16
- Turning Radius: 145
- Accessories: Horn, Bolt-on Front Bumper
- Safety: Deadman seat switch
- Seats: Two bucket seats on slide adjusters
- Steering: Automotive steering wheel
- Suspension: Dual leaf springs on front and rear
- Transmission: Goodyear Eagle Synchronous drive
- Voltage: 48
- Wheels: 5.7x8 LRC pneumatic tires
- Motor: 15 hp shunt motor
- Lights: LED dual headlights & tail/brake lights
- Indicators: Battery status indicator
- Battery: Eight 6V-220AH batteries
- Body: 14-G diamond-plate steel body, tubular frame
- Brakes: Rear hydraulic brakes, 11
- Charger: regenerative braking"
- Clutch: High-Frequency Charger, improves battery performance, prevents current surge, 50/60HZ, 110/220VAC
- Color: Security orange or federal yellow
- Controller: Electronic speed controller
- Drive Axle: Differential with automotive ring gear
- Deck Height: 27
- Deck Length: 76
- Deck Width: 44
- Vehicle Height: 46
- Vehicle Width: 44
- Wheel Base: 60
- Weight With Batteries: 1650
- Wheels: 5.7x8 LRC pneumatic tires
Details
This fully customizable vehicle is designed for moving large groups quickly, safely and comfortably. It can efficiently pull two tram trailers in all sorts of conditions and climb hills with ease. Its well-balanced design and short turning radius ensure superior maneuverability with responsive steering and braking. Its light-touch accelerator means a smoother ride, while its industrial batteries and cell equalization converter mean more trips per charge. Available in unlimited configurations, including forward-facing or back-to-back seating. Optional wheelchair ramp.
- Equipment Type
- Industrial Vehicles / Personnel Carriers
