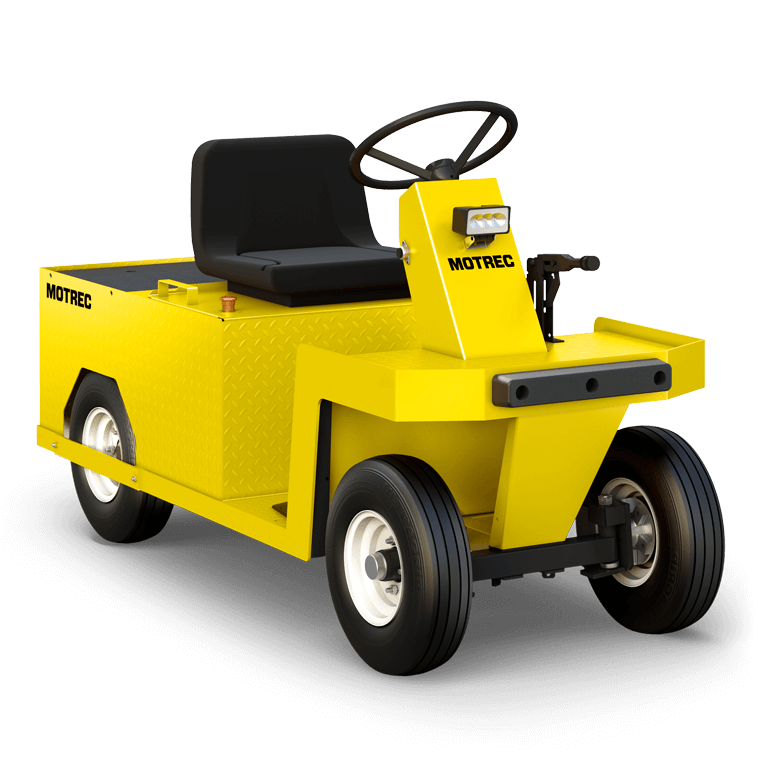

MP-250 24V Motrec

  • Code: MP - 250 - 24V
  • Passengers: 1
  • Loading Capacity: 500
  • Towing Capacity: 2000
  • Speed MPH: 7
  • Speed KPH: 16
  • Turning Radius: 75
  • Standards: Conforms to requirements for type E, UL 583, ANSI B56.9
  • Performance Notes: Includes passenger weight of 200 lbs. Specifications and standard equipment are subject to change without notice.
  • Accessories: Bolt-on bumpers and rear wheel guards, 24V accessories to equalize cells and extend battery life.
  • Safety: Reverse alarm, deadman seat switch, horn
  • Seats: Bucket seat on slide adjusters
  • Steering: Automotive Steering Wheel
  • Suspension: Dual coil springs and shock absorber on rear
  • Transmission: Direct drive
  • Voltage: 24
  • Wheels: 4.8x8 LRB pneumatic tires
  • Motor: 6 hp shunt motor
  • Lights: LED headlight & tail/brake light
  • Indicators: Battery status indicator
  • Battery: Four 6V-225AH batteries
  • Body: 14-G diamond-plate steel body, tubular frame
  • Brakes: Dual self-adjusting mechanical drum brakes on rear, hand lever parking brake, regenerative braking
  • Charger: High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic.
  • Color: Security orange or federal yellow
  • Controller: SEPEX Electronic speed controller
  • Drive Axle: Helical gear Differential
  • Deck Height: 25
  • Deck Length: 20
  • Deck Width: 30
  • Vehicle Height: 45
  • Vehicle Length: 76
  • Vehicle Width: 30
  • Weight: 760
  • Wheel Base: 52
Details

It’s no surprise the competition envies our original design. This agile and versatile personnel carrier has it all: A narrow deck, four wheels for greater stability on rough terrain, powerful motor, rugged automotive differential and larger self-adjusting drum brakes, high-strength tubular frame, all-steel body, bolt-on front bumper and side bar protection, easy-to-access under-seat battery compartment… The list keeps going. It can also pull up to 2,000 lbs., making it a great tow tractor.

Equipment Type
Industrial Vehicles / Personnel Carriers
