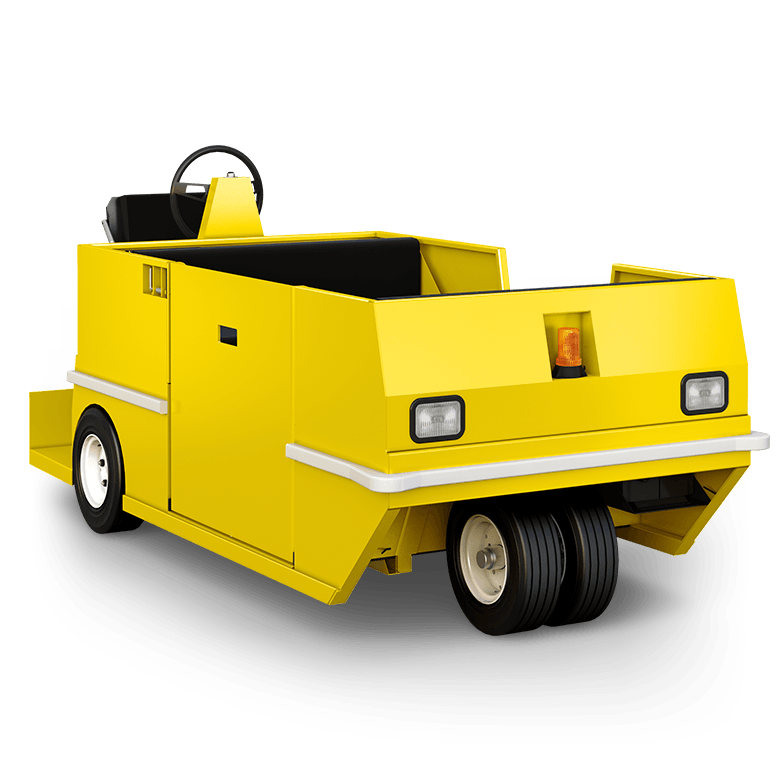

MP-420 36V Motrec

  • Code: MP - 420 - 36V
  • Passengers: 5
  • Loading Capacity: 1700
  • Towing Capacity: 4000
  • Speed MPH: 8
  • Speed KPH: 13
  • Turning Radius: 90
  • Standards: Conforms to UL 583 type E and ANSI B56.8
  • Performance Notes: Includes passenger weight of 200 lbs. Specifications and standard equipment are subject to change without notice.
  • Accessories: Horn, 36V/12V converter to equalize cells and extend battery life
  • Safety: Reverse alarm, strobelight
  • Seats: Padded backrest for operator, bench seating for four passengers
  • Steering: Automotive steering wheel
  • Suspension: Rigid axles on front and rear
  • Transmission: Dual V-belt drive
  • Voltage: 36
  • Wheels: 4.80 x 8 LRC pneumatic tires
  • Motor: 10 hp
  • Lights: Dual LED headlights
  • Indicators: Battery status indicator
  • Battery: Six 6V-225AH batteries
  • Brakes: Dual self-adjusting mechanical drum brakes on rear, deadman brake on control treadle, regenerative braking
  • Charger: 25 Amp, built-in automatic
  • Color: Security orange or federal yellow
  • Controller: Electronic speed controller
  • Drive Axle: Differential with automotive ring gear
  • Vehicle Height: 49
  • Vehicle Length: 104
  • Vehicle Width: 47
  • Weight: 1300
  • Wheel Base: 66
Details

This quiet, zero-emission vehicle is designed for transporting up to four passengers quickly and safely. It features two comfortable benches with padded backrests, a dual-sided entry with optional wheelchair-accessible fold-down ramps, and a rear platform large enough for several items of luggage. Stand-up operators enjoy good visibility and face passengers, making interacting easier, safer and much more enjoyable. The light-touch accelerator pedal further reduces operator fatigue. ADA compliant.

Equipment Type
Industrial Vehicles / Personnel Carriers
