SC-175 Taylor Dunn
Model
SC-175
Type
Electric
Speed
8 mph (12.9 km/h)
Range
20 miles (32 km)
Load Capacity
1,200 lbs. (545.5 kg)
Tow Capacity
5,000 lbs. (2,273 kg)
People
1
Description

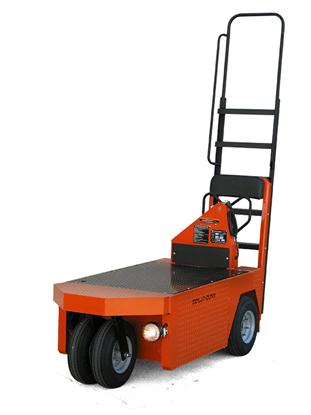

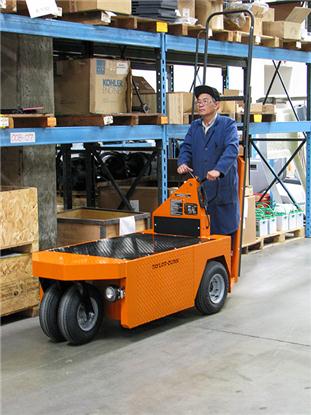

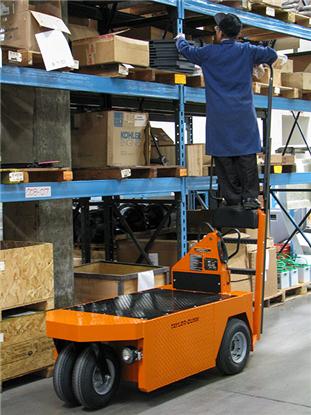

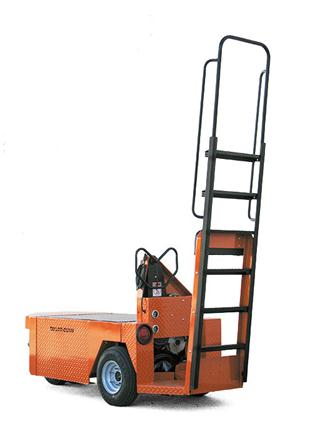

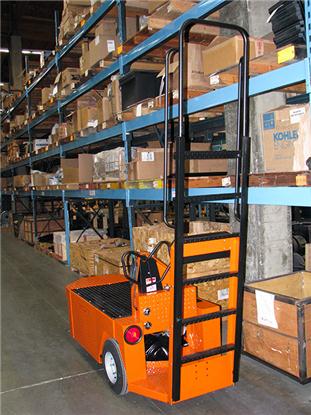

The SC-175 Stockchaser travels at speeds up to 8 mph and can carry up to 1,200 lbs. It’s equipped with a step ladder, allowing operators to pick materials from high stock locations.
Options
Charger
– Portable 25 amp charger or 40 amp charger
– Built in 110V/220V 50 hz
Accessories
– Strobe light amber – on pole
– Headlight
– Round steering wheel
– Hour meter
– Knee pad, comfort kit
– 4, 5 or 6 step ladder
Tires
– 4.00×8 soft solid tires on split rims
– 16 1/4 solid extra cushion tires
– Dual front fork
Deck
– Wider bed
– Clipboard holder
– Second level deck
Battery
– Lift out battery box
– Roll out battery box
– 244 amp hr battery
Hitches
– Automatic coupling trailer
– Pintle trailer
– 1 7/8” or 2” ball & bracket
Several options are available that provide maximum functionality for your operation.
Performance
Speed
8 mph (12.9 km/h)
Range
20 miles (32 km)
Load Capacity
1,200 lbs. (545.5 kg)
Tow Capacity
5,000 lbs. (2,273 kg)
Passengers
1
Dimensions
Weight
788 LBS. (357 kG)
Length
82″ (208.3cm)
Width
29.5″ (74.9cm)
Height
Less Cab: 43″ (109.2cm) With Cab: N/A
Hitch Height
12″ (30.5cm)
Outside Turn Radius
67″ (170.0cm)
Wheel Base
48″ (121.9cm)
Deck
Width: 29″ (73.7cm) Length: 43″ (102.2cm) Height: 23″ (58.4cm)
