B-150

Model

B-150

Type

Electric

Speed

12 mph (19.3 km/h)

Range

20 miles (32 km)

Load Capacity

1,600 lbs. (725 kg)

Tow Capacity

7,500 lbs. (3,409 kg)

People

2

Description

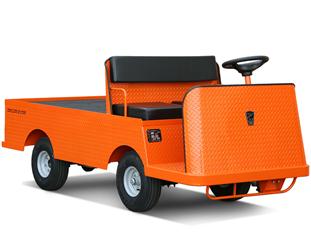

Equipped with a 36-volt electric drive train, this vehicle is designed with one of the shortest turning radii in its class.  Designed and manufactured with an all-steel unitized body, the B-150 provides years of reliable operation in rugged applications. The B-150’s modular electrical system allows for ease of maintenance, thereby reducing your operating and maintenance costs. This vehicle can also be equipped with a ladder rack, tool boxes, tool cabinets, and a workbench, making it an excellent choice for any maintenance application.

Options

Charger

– Portable 25 amp charger or 40 amp charger

– Built in 110V/220V 50 Hz.

Accessories

– Strobe light, Amber – on pole, or top of cab

– Headlights, directional signals

– Reverse alarm, hour meter

– Seat belts

Deck

– Stake sides, removable end gate, 14″ high

– welding tank cutouts
– Steel sides and end gates, fold down
– Steel panel cargo box

Battery Compartment
– 244 amp-hour batteries
– Lift out

Hitches
– Automatic coupling, trailer
– Pintle, trailer
– 1-7/8 ball and bracket

Brakes
– Front & rear wheel hydraulic
– Fiberglass cab & vinyl doors
– Mirrors – left, right and rear
– Windshield wiper

Top Frames
– Fiberglass or surrey top cover with tubular frame

Frame
– Smooth skin

Color
– White, or special paint color
– Undercoating

Performance

Speed

12 mph (19.3 km/h)

Range

20 miles (32 km)

Load Capacity

1,600 lbs. (725 kg)

Tow Capacity

7,500 lbs. (3,409 kg)

Passengers

2

Dimensions

Weight

1,214 lbs. (550 kg)

Length

107.95″ (274.2cm)

Width

44.29″ (112.5cm)

Height

Less Cab: 47.5″ (120.7cm) With Cab: 71″ (180.3cm)

Hitch Height

10.37″ (26.34cm)

Outside Turn Radius

110″ (279.4cm)

Wheel Base

50.5″ (128.3cm)

Deck

Width: 44″ (111.76cm) Length: 63″ (160.02cm) Height: 28″ (71.1cm)

Chassis

Interior
