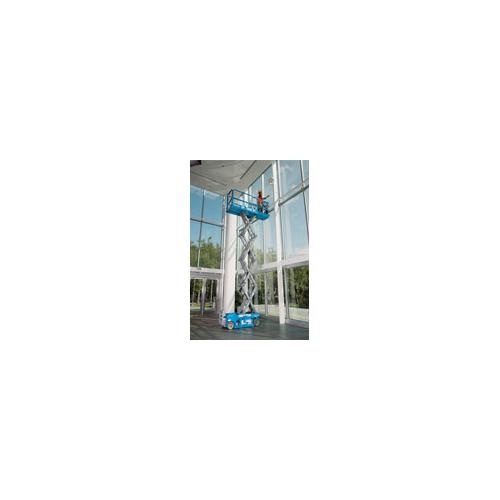

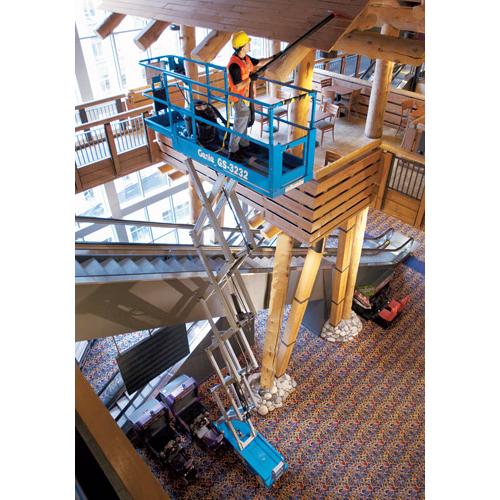

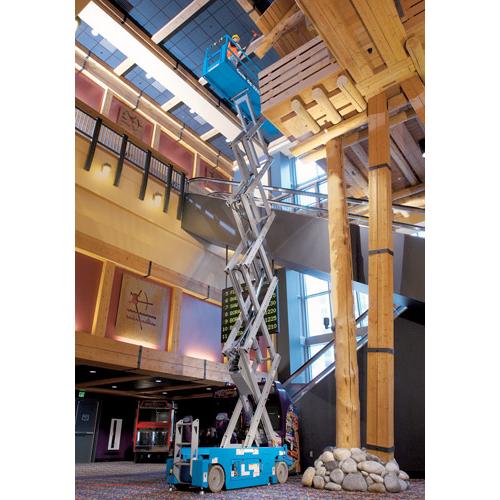

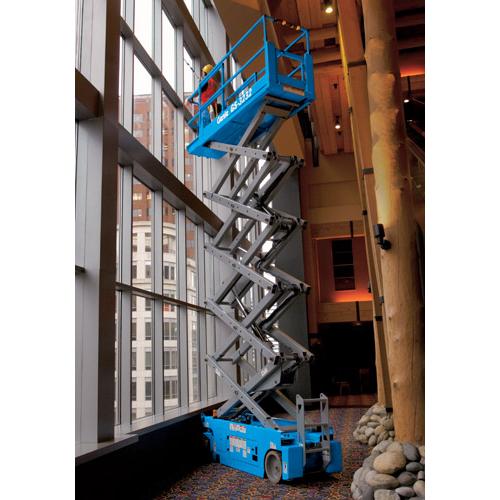

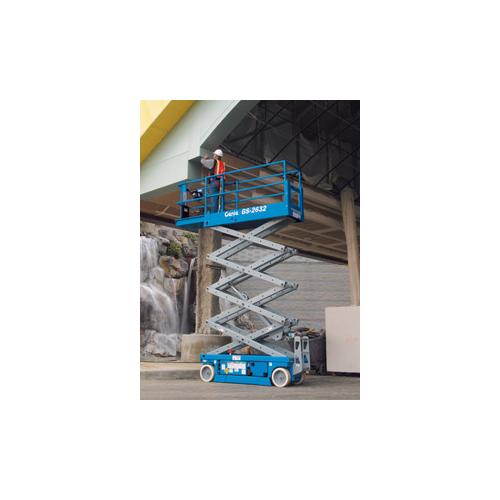

GS™-3232 Genie

Working Height

38 ft (11.75 m)

Lift Capacity

500 lbs (227 kg)

Gradeability

25%

Overview

  • Quiet, zero-emission electric operation ideal for sound-sensitive environments
  • Front-wheel drive and zero inside turning radius for maneuverability in tight spaces
  • Automatic leveling hydraulic outrigger system levels machine on slopes up to 5?
  • Link stack is centered at full elevation and platform extension for machine rigidity

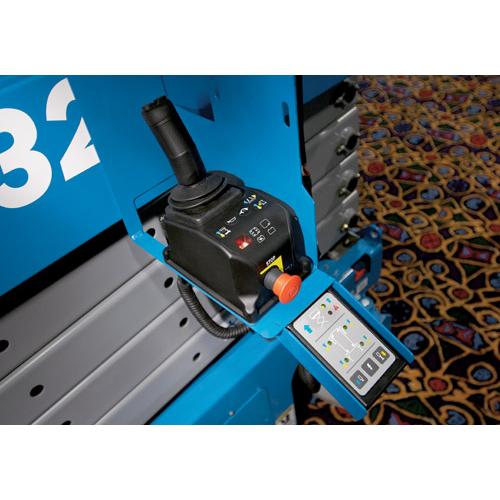

  • Forward-angled Hall-effect joystick for comfortable, accurate control
  • LED window on platform controls with battery level indicator, on-board diagnostics and more
  • Electronic control system allows for variable-speed DC motor for greater battery efficiency
  • Compact dimensions and folding guardrails — easily passes through standard single or double doors
  • 3 ft (.91 m) extension deck provides maximum platform workspace for workers and tools

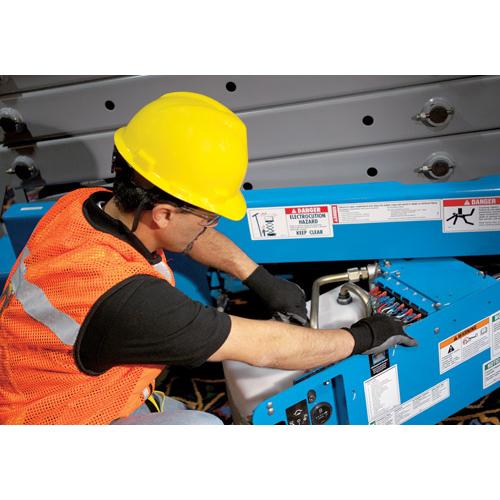

  • Heavy-duty steel swing-out service trays for easy service access
Working Height

38 ft (11.75 m)

Width

2 ft 8 in (0.81 m)

Outside Turning Radius

7 ft (2.13 m)

Lift Capacity

500 lbs (227 kg)

Gradeability

25%
