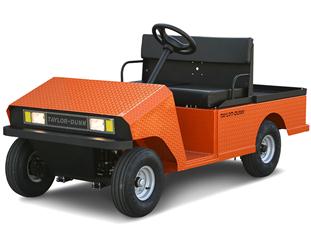

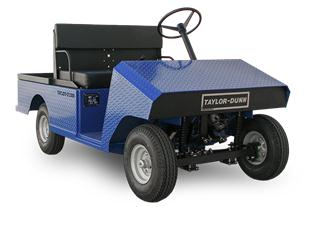

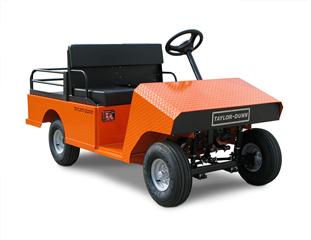

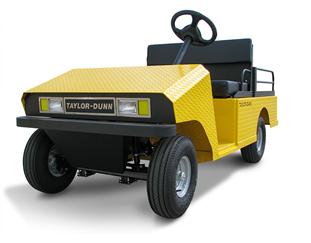

R-380 36V GT Taylor Dunn

Description

The R-380 Roadmaster is designed to provide the ultimate versatilty in today’s work environment.  This vehicle utilizes 16 gauge steel uni-body design that ensures years of service in rugged applications.

Model

R-380 36V GT

Type

Electric

Speed

11 mph (17.7 km/h)

Range

26 miles (42 km)

Load Capacity

1,150 lbs. (522 KG)

Tow Capacity

5,000 lbs. (2,273 kg)

People

4

Description

The R-380 36V GT is equipped with a 36 volt drive train that provides speeds up to 12 mph. Equipped standard with automatic charger, solid state speed controller, safety seat switch and 6 hp DC motor, the R-380 36V is the best value in its class of vehicles. Configured with fold down 4 passenger seating, the R-380 36V GT can be used as a personnel or burden carrier during daily operations. Equipped with factory-installed steel cabin and doors, this vehicle ideal for both indoor and outdoor applications.

Options

Charger

– Portable 25 amp charger or 40 amp charger

– Built in 110V/220V 50 Hz.

– Charger interlock

Accessories

– Strobe light, amber – on pole, or top of cab

– Dual headlights, taillights, directional signals

– Reverse buzzer, hour meter

– Front bumper

Deck

– 9 inch high pipe rails, removable end gate

– Cargo box 9 inch high, bolt-on with drop tailgate

– Rear flip up seat, 4 passenger with side hand rails

– Steel panel box 43″w x 31″l x 45″h with double locking doors in rear, with safety glass windows

– Rear tool box with lockable doors

Battery Compartment

– 250 amp-hour batteries

Tires

– 18×8.50×8 Terra tires, pneumatic

– 5.00×8 soft solid

Brakes

– Front & rear wheel hydraulic

Cab

– Steel cab, doors & safety glass windows

– Windshield, rigid plexiglass, clear

– Mirrors – left, right and rear

Top Frames

– Fiberglass or surrey top cover with tubular frame

– Extended cab, steel top

Drive Axle

– 400 amp controller

– 10 hp, direct drive

Color

– White, or special paint color

– Undercoating

– Special seat color

Performance

Speed

11 mph (17.7 km/h)

Range

26 miles (42 km)

Load Capacity

1,150 lbs. (522 KG)

Tow Capacity

5,000 lbs. (2,273 kg)

Passengers

2

Dimensions

Weight

1,195 lbS (542 kG)

Length

99.5″ (352.7cm)

Width

44″ (111.7cm)

Height

Less Cab: 45.5″ 9115.5cm) With Cab: 69″ (175.2cm)

Hitch Height

13″ (33.0cm)

Outside Turn Radius

112″ (284.3cm)

Wheel Base

63.5″ (161.3cm)

Deck

Width: 41.5″ (105.4cm) Length: 32″ (81.3cm) Height: 25″ (63.5cm)

Chassis

Interior
