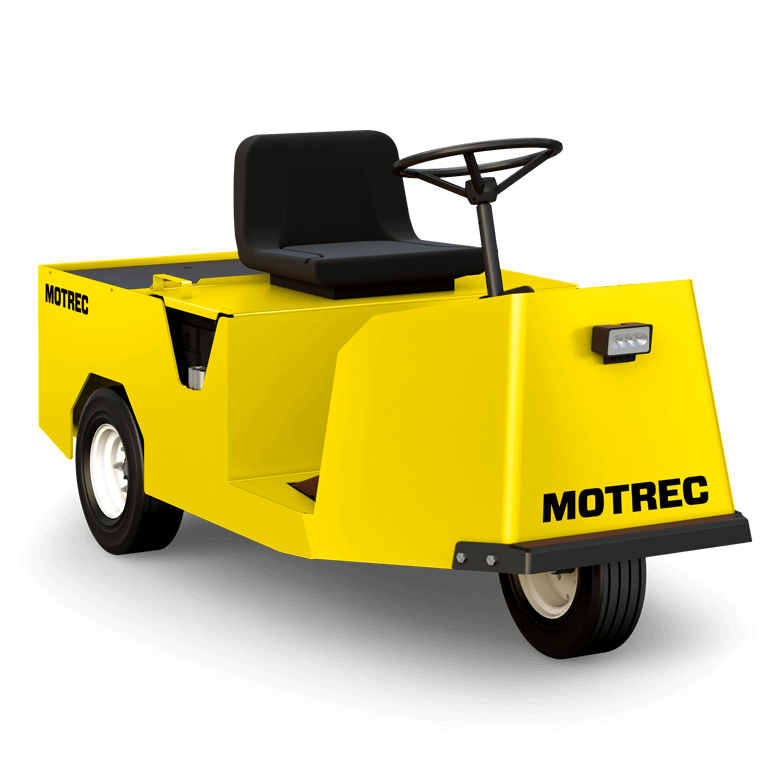

MT-280 36V HD Motrec

  • Code: MT - 280 - 36V HD
  • Passengers: 1
  • Loading Capacity: 800
  • Towing Capacity: 10000
  • Speed MPH: 8
  • Speed KPH: 14
  • Turning Radius: 72
  • Standards: UL Approved
  • Performance Notes: Includes passenger weight of 200 lbs. Specifications and standard equipment are subject to change without notice.
  • Accessories: 36V/12V converter for 12-volt accessories, bolt-on front bumper
  • Safety: Reverse alarm, deadman seat switch, horn
  • Seats: Bucket seat on slide adjusters
  • Steering: Automotive steering wheel
  • Suspension: Dual coil springs & shock absorbers front and Dual leaf springs on rear
  • Transmission: Direct drive
  • Voltage: 36
  • Wheels: 4.8x8 LRC pneumatic tires
  • Motor: Brushless AC motor, 7.5 HP Intermittent, 10 HP Max
  • Lights: LED headlight & tail/brake light
  • Indicators: Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
  • Battery: No battery included
  • Body: All-steel unibody construction
  • Brakes: Rear hydraulic drum brakes, regenerative braking
  • Charger: No charger included
  • Color: Security orange or federal yellow
  • Controller: AC Electronic speed controller
  • Drive Axle: Helical gear differential
  • Battery Height: 17.5
  • Battery Length: 35.2
  • Battery Width: 16
  • Deck Height: 25
  • Deck Length: 21
  • Deck Width: 38
  • Vehicle Height: 41
  • Vehicle Length: 79
  • Vehicle Width: 38
  • Weight: 1000
  • Wheel Base: 52
Details

This hardworking tow tractor delivers outstanding performance. With its efficient AC direct-drive motor and 10,000-lb. towing capacity, the MT-280 is ideal for moving trailers over long distances. It’s also narrow enough to fit through most door openings. From its all-steel construction and demountable bumpers to its high torque drum brakes, this tugger is built for years of heavy use in total comfort and safety. The easy-to-access under seat industrial battery prevents mid-shift interruptions.

Equipment Type
Industrial Tow Tractors / Industrial Vehicles
