Details

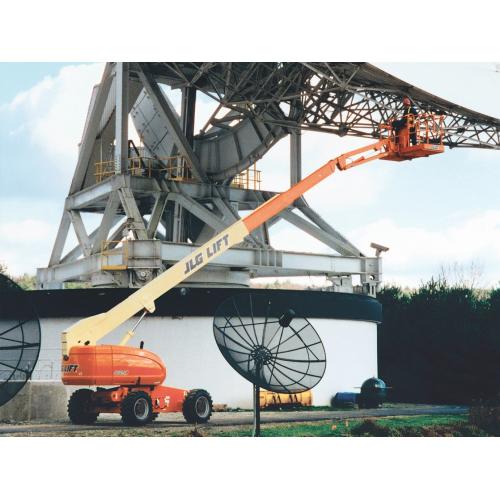

  • Best selling 60 ft boom lifts
  • Select from 2 models
  • Easy-to-use platform controls reduce operator training time
  • Equipped with a fuel-efficient Tier 4 engine

Power Source

Auxiliary Power

12 Volts DC

Capacity Fuel Tank

40 gal. / 151.42 L

Engine Type Diesel

DEUTZ TD 2.9L Tier 4 Final 67 hp

Engine Type Dual Fuel

GM Vortec 3000 MPR 82 hp

Performance

Axle Oscillation

8 in. / 0.2 m

Drive Speed Wd

4.25 mph / 6.84 km/h

Gradeability Wd

30 %

Platform Capacity Unrestricted

500 lb / 226.80 kg

Swing

360 Degrees

Swing Type

Continuous

Turning Radius Outside Ws

17 ft 7 in. / 5.36 m

Jib Range Of Articulation

132 Degrees

Dimensional Data

Ground Clearance

1 ft / 0.3 m

Machine Height

8 ft 5 in. / 2.56 m

Machine Length

35 ft 8 in. / 10.87 m

Machine Width

8 ft 2 in. / 2.49 m

Platform Dimension A

3 ft / 0.91 m

Platform Dimension B

8 ft / 2.44 m

Platform Height

66 ft 8 in. / 20.32 m

Tailswing

3 ft 9 in. / 1.14 m

Tire Size

39 x 15-22.5 Lug Tread

Reach Specifications

Horizontal Jib Rotation

0 Degrees

Horizontal Outreach

56 ft 9 in. / 17.3 m

Platform Height

66 ft 8 in. / 20.32 m

General

Capacity Hydraulic Reservoir

32 gal. / 121.13 L

Machine Weight

26650 lb / 12088.24 kg
