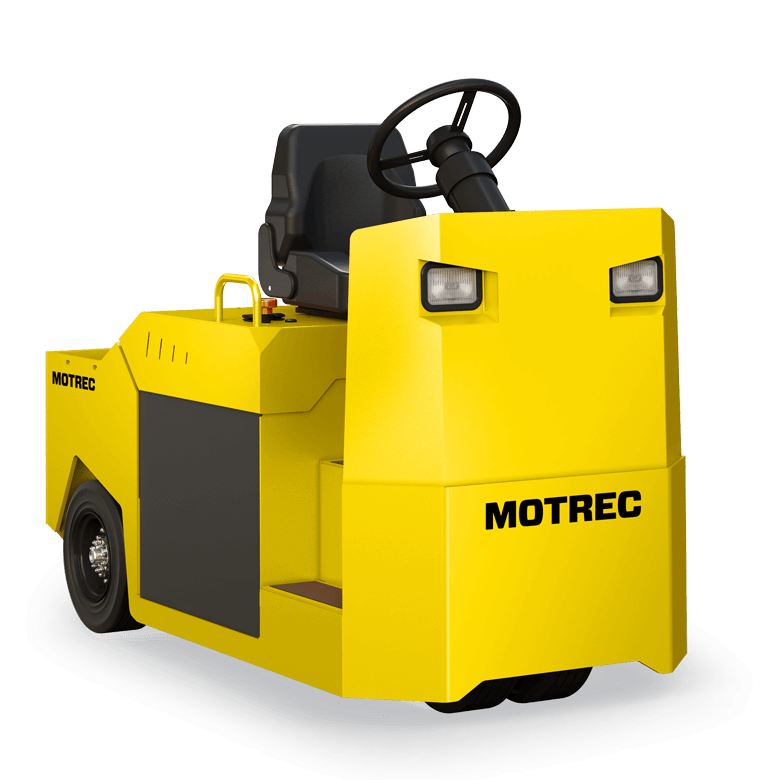

MT-340 48V HD Motrec

  • Code: MT - 340 - 48V HD
  • Passengers: 1
  • Loading Capacity: 500
  • Towing Capacity: 20000
  • Speed MPH: 8
  • Speed KPH: 13
  • Turning Radius: 68
  • Drawbar Pull - Normal: 500
  • Accessories: 48V/12V converter for 12-volt accessories, backlit and sealed buttons
  • Safety: Reverse alarm, deadman seat switch, horn, emergency stop button, anti slip griptape
  • Seats: Semi-suspension seat on slide adjusters
  • Steering: Automotive steering wheel
  • Suspension: Leaf springs rear suspension system
  • Transmission: Direct drive
  • Voltage: 48
  • Wheels: Solid tires
  • Motor: 15 HP brushless AC motor
  • Lights: LED dual headlights & tail/brake lights
  • Indicators: Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability
  • Battery: No battery included
  • Body: All-steel unibody construction, 2 rear-end plate
  • Brakes: powder coating"
  • Charger: Rear wheel hydraulic drum brakes, regenerative braking
  • Clutch: No charger included
  • Color: Security orange or federal yellow
  • Controller: Electronic AC speed controller
  • Drive Axle: Helical gear differential
  • Battery Height: 24
  • Battery Length: 35.75
  • Battery Width: 26
  • Deck Height: 26.5
  • Deck Length: 16.25
  • Deck Width: 37
  • Ground Clearance: 4
  • Vehicle Height: 58
  • Vehicle Length: 72
  • Vehicle Width: 38
  • Weight: 2000
  • Wheel Base: 49.5
  • Weight With Batteries: 2300
  • Battery Weight Max: 1700
  • Battery Weight Min: 1700
  • Weight Without Batteries: 2000
Details

The industry benchmark for compact tow tractors has once again raised the bar. Still a quiet and low-maintenance workhorse with an unbeatable turning radius and up to 20,000-lb. towing capacity, but now with leaf spring suspension and shock absorbers, flat-free solid softy tires, inching control, protected electrical components and much more – all standard. Power and performance are delivered through a brushless AC powertrain with efficient direct-drive differential, hefty 1″ rear-end plate and large drum brakes. We’ve also got your back with a long list of standard ergonomic and safety features.

Equipment Type
Industrial Tow Tractors / Industrial Vehicles
