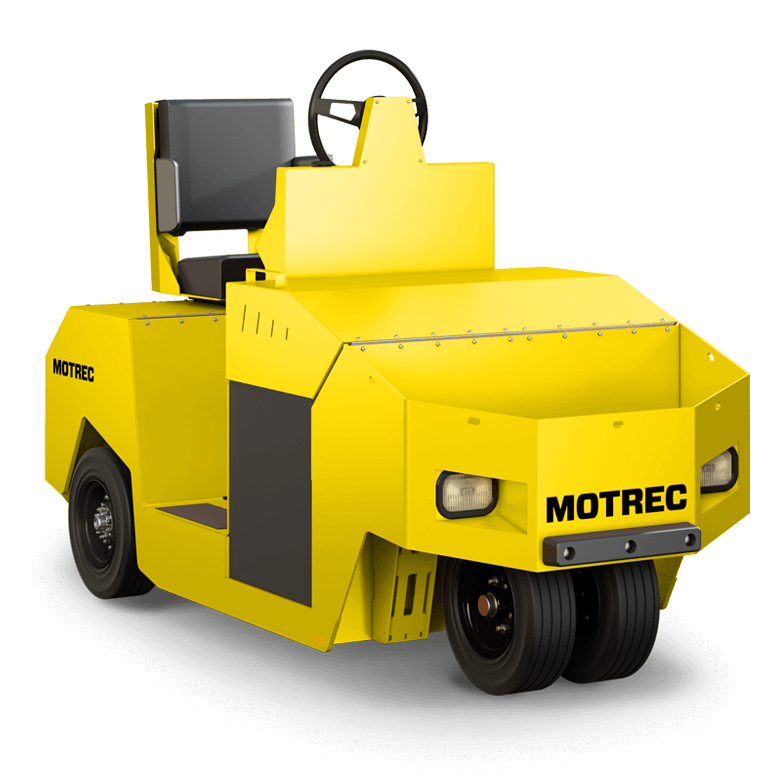

MT-310 36V Motrec

  • Code: MT - 310 - 36V
  • Passengers: 1
  • Loading Capacity: 500
  • Towing Capacity: 16000
  • Speed MPH: 6
  • Speed KPH: 13
  • Turning Radius: 78
  • Standards: Conforms to requirements for type E, UL 583, ANSI B56.9
  • Performance Notes: 16,000 lbs towing capacity on flat level surface with 1300 lbs battery. Specifications and standard equipment are subject to change without notice
  • Drawbar Pull - Normal: 400
  • Accessories: 36V/12V converter for 12-volt accessories, backlit and sealed buttons
  • Safety: Reverse alarm, deadman seat switch, horn, emergency stop button, anti slip griptape
  • Seats: Sit-down / Stand-up seat
  • Steering: Automotive steering wheel
  • Suspension: Leaf springs rear suspension system
  • Transmission: Direct drive
  • Voltage: 36
  • Wheels: Solid Tires
  • Motor: 10 HP brushless AC motor
  • Lights: LED dual headlights & tail/brake lights
  • Indicators: Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability
  • Battery: No battery included
  • Body: All-steel unibody construction, powder coating
  • Brakes: Rear wheel hydraulic drum brakes, regenerative braking
  • Charger: No charger included
  • Color: Security orange or federal yellow
  • Controller: Electronic AC speed controller
  • Drive Axle: Helical gear differential
  • Battery Height: 24
  • Battery Length: 35.75
  • Battery Width: 16.75
  • Ground Clearance: 4
  • Vehicle Height: 63
  • Vehicle Length: 88
  • Vehicle Width: 38
  • Wheel Base: 58.5
Details

The MT-310 is in a class of its own. Designed from the ground up to offer exceptional versatility, this hard-working tow tractor is jam-packed with features operators will appreciate – starting with its ergonomic one-touch sit-down / stand-up seat that reduces fatigue and strain. The easy-access rear hitch means no more constantly climbing in and out of the vehicle. A low-maintenance, high-efficiency AC vehicle with a confident 16,000-lb towing capacity and full customization possibilities.

Equipment Type
Industrial Tow Tractors / Industrial Vehicles
