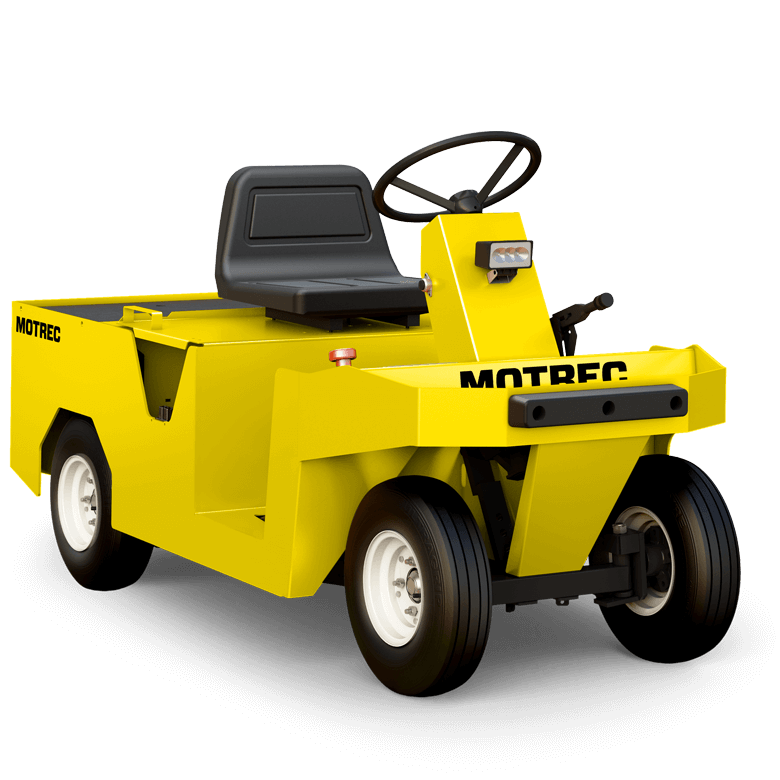

MT-290 24V Narrow Motrec

  • Code: MT - 290 - 24V Narrow
  • Passengers: 1
  • Loading Capacity: 500
  • Towing Capacity: 6000
  • Speed MPH: 6
  • Speed KPH: 10
  • Turning Radius: 72
  • Standards: Conforms to requirements for type E, UL 583, ANSI B56.9
  • Performance Notes: Specifications and standard equipment are subject to change without notice.
  • Accessories: Bolt-on bumpers and rear wheel guards, 24V accessories to equalize cells and extend battery life
  • Safety: Reverse alarm, deadman seat switch, horn
  • Seats: Bucket seat on slide adjusters
  • Steering: Automotive Steering Wheel
  • Suspension: Dual leaf springs on rear
  • Transmission: Dual V-belt drive
  • Voltage: 24
  • Wheels: 4.8x8 LRC pneumatic tires
  • Motor: 6 hp shunt motor
  • Lights: LED headlight & tail/brake light
  • Indicators: Battery status indicator
  • Battery: Four 6V-225AH batteries
  • Body: 14-G diamond-plate steel body, tubular frame
  • Brakes: Dual self-adjusting mechanical drum brakes on rear, hand lever parking brake, regenerative braking
  • Charger: High-Frequency Charger, improves battery performance, prevents current surge, 50/60HZ, 110/220VAC
  • Color: Security orange or federal yellow
  • Controller: SEPEX Electronic speed controller
  • Drive Axle: Differential with automotive ring gear
  • Battery Height: 24
  • Battery Length: 20.5
  • Battery Width: 38.75
  • Deck Height: 25
  • Deck Length: 20
  • Deck Width: 29
  • Vehicle Height: 45
  • Vehicle Width: 29
  • Wheel Base: 52
  • Weight With Batteries: 900
Details

Built on our popular MP-250 base, the more powerful MT-290 is equal parts modern workhorse and mobile workshop. Its efficient AC motor offers impressive acceleration, even when towing loads of 6,000 lbs. Its all-steel construction and four-wheel vibration dampening design ensure a smooth and stable ride even on bumpy surfaces. This agile, round-the-clock tow tractor effortlessly maneuvers through challenging areas, including doorways. A multi-purpose tugger boasting a long-lasting industrial battery with easy under-the-seat access.

Equipment Type
Industrial Tow Tractors / Industrial Vehicles
