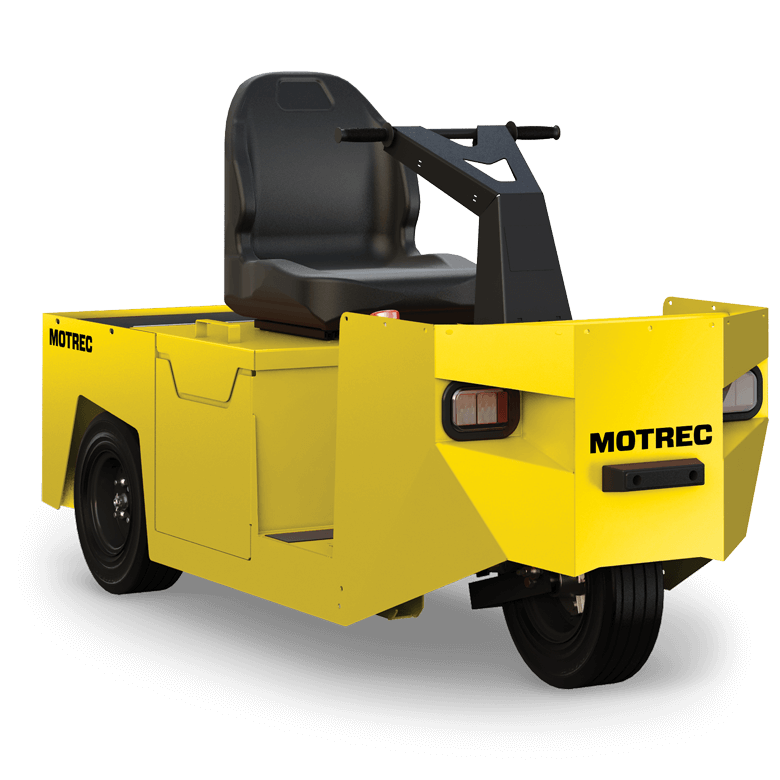

MT-180 48V Motrec

  • Code: MT - 180 - 48V
  • Passengers: 1
  • Loading Capacity: 500
  • Towing Capacity: 10000
  • Speed MPH: 8
  • Speed KPH: 13
  • Turning Radius: 71
  • Standards: Comply with ANSI B56.9 and UL 583
  • Drawbar Pull - Normal: 250
  • Accessories: 48V/12V converter for 12-volt accessories, front and rear rubber bumpers
  • Safety: Reverse Alarm, Deadman Seat Switch, Emergency Stop Button, Horn
  • Seats: Bucket seat on slide adjusters
  • Steering: Handlebar
  • Suspension: Coil spring and shock absorbers on front, leaf spring on rear
  • Transmission: Direct drive
  • Voltage: 48
  • Wheels: 4.8x8 LRC pneumatic tires
  • Motor: 15 HP brushless AC motor
  • Lights: Dual LED headlights & tail/brake lights
  • Indicators: Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
  • Battery: 48V TPPL battery pack, 157AH
  • Body: All-steel unibody construction
  • Brakes: Front drum brake, Regenerative braking, electromagnetic parking brake.
  • Charger: High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic
  • Color: Powder coating
  • Controller: Electronic AC speed controller
  • Drive Axle: Helical gear differential
  • Battery Height: 15
  • Battery Length: 29.4
  • Battery Width: 17.7
  • Deck Height: 23.75
  • Deck Length: 18.25
  • Deck Width: 29.75
  • Vehicle Height: 46
  • Vehicle Length: 80
  • Vehicle Width: 29.75
  • Wheel Base: 53
  • Battery Weight Max: 600
  • Battery Weight Min: 600
  • Weight Without Batteries: 900
Details

This hardworking tow tractor delivers outstanding performance. With its efficient motor and 10,000-lbs. towing capacity, the MT-180 is ideal for moving trailers. It’s also narrow enough to fi t through most door openings. From its all-steel construction to its all-wheel braking, this tugger is built for years of heavy use in total comfort and safety. All this combined with superior AC technology makes short work of tough requests.

Equipment Type
Industrial Tow Tractors / Industrial Vehicles
