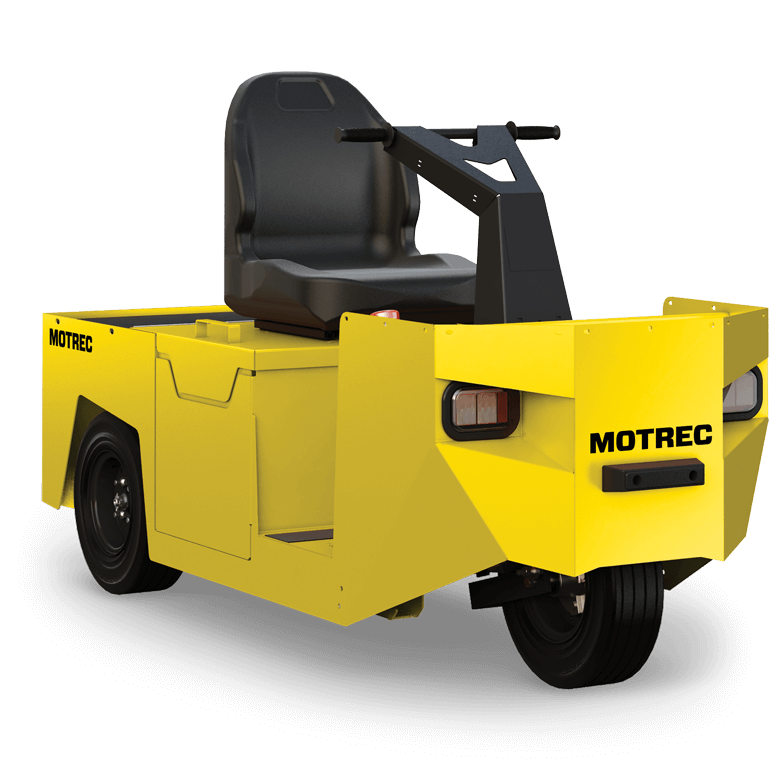

MT-180 36V Motrec

  • Code: MT - 180 - 36V
  • Passengers: 1
  • Loading Capacity: 500
  • Towing Capacity: 10000
  • Speed MPH: 8
  • Speed KPH: 13
  • Turning Radius: 71
  • Standards: Comply with ANSI B56.9 and UL 583
  • Drawbar Pull - Normal: 250
  • Accessories: 36V/12V converter for 12-volt accessories, front and rear rubber bumpers
  • Safety: Reverse Alarm, Deadman Seat Switch, Emergency Stop Button, Horn
  • Seats: Bucket seat on slide adjusters
  • Steering: Handlebar
  • Suspension: Coil spring and shock absorbers on front, leaf spring on rear
  • Transmission: Direct drive
  • Voltage: 36
  • Wheels: 4.8x8 LRC pneumatic tires
  • Motor: 10 HP brushless AC motor
  • Lights: Dual LED headlights & tail/brake lights
  • Indicators: Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
  • Battery: Six 6V-225AH batteries
  • Body: All-steel unibody construction
  • Brakes: Front drum brake, Regenerative braking, electromagnetic parking brake.
  • Charger: High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic
  • Color: Powder coating
  • Controller: Electronic AC speed controller
  • Drive Axle: Helical gear differential
  • Battery Height: 15
  • Battery Length: 29.4
  • Battery Width: 17.7
  • Deck Height: 23.75
  • Deck Length: 18.25
  • Deck Width: 29.75
  • Vehicle Height: 46
  • Vehicle Length: 80
  • Vehicle Width: 29.75
  • Wheel Base: 53
  • Battery Weight Max: 600
  • Battery Weight Min: 600
  • Weight Without Batteries: 900
  • Wheels: 4.8x8 LRC pneumatic tires
