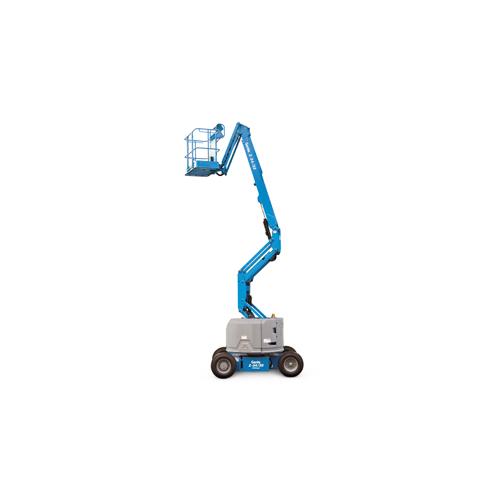

Z™-34/22 Genie

Working Height

40 ft 6 in (12.52 m)

Horizontal Reach

22 ft 3 in (6.78 m)

Up Over Clearance

15 ft (4.57 m)

Overview

  • 48V DC machine with diesel powered generator acting as 100 amp battery charger make it ideal for indoor and outdoor applications
  • Maximum drive performance of 30% gradeability and 4.0 mph travel speed
  • Motor controller eliminates the need for forward/reverse contactors or speed sensors reducing complexity and improving reliability of the drive system
  • The direct electric, 48V drive system provides outstanding battery life
  • 4 ft (1.2 m) jib features 139° working range
  • Self-leveling platform features 180° powered horizontal rotation for precise positioning and easy operation
  • Versatile 40 ft 6 in (12.52 m) working height, 22 ft 3 in (6.78 m) horizontal reach
  • Compact 68 in (1.73 m) width
  • Automatic hill braking and ramp braking
Working Height

40 ft 6 in (12.52 m)

Width

5 ft 8 in (1.73 m)

Horizontal Reach

22 ft 3 in (6.78 m)

Up Over Clearance

15 ft (4.57 m)

Lift Capacity

500 lbs (227 kg)
