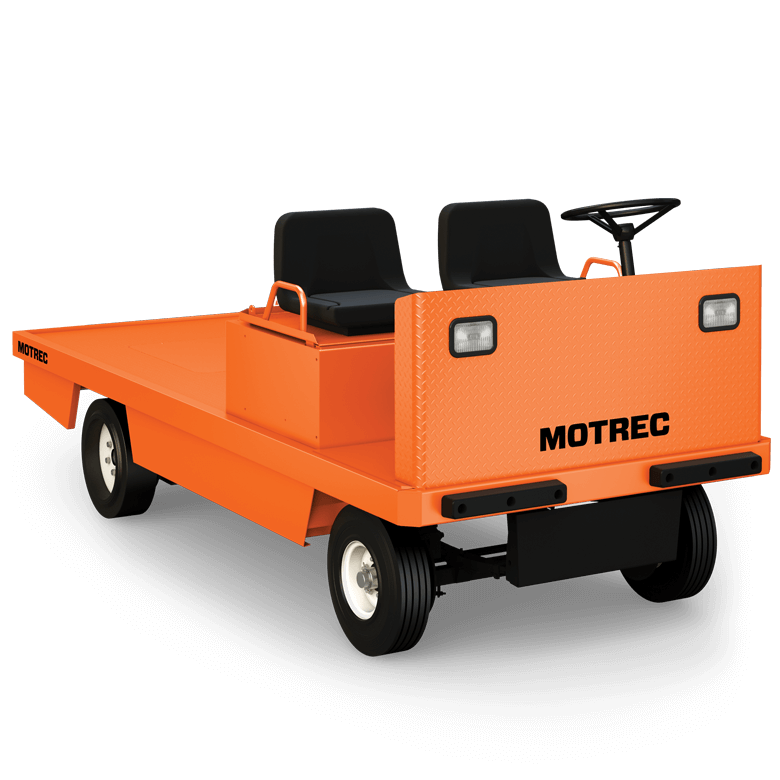

MC-660 48V Motrec

Overview

The MC-660 is the ideal carrier for long and heavy loads of up to 15,000 lbs.*-even over long distances. Its fully customizable modular design features a low, long flatbed cargo deck and powerful four-wheel drive. Also available in unlimited configurations including our cab option, or with the single seat and half-cowl for full-length deck space on the right side. A rugged, multi-purpose vehicle offering safe and dependable performance, even when handling the heaviest loads.

Overview

Passengers

2

Load Capacity

3,000 lbs.

Towing Capacity

6,000 lbs.

Speed

8 mph

Turning Radius

150″

Powertrain

Motor

15 hp shunt motor motor

Drive Axle

Differential with automotive ring gear

Transmission

Goodyear Eagle Synchronous drive

Controller

Electronic speed controller

Energy

Voltage

48V

Battery

No battery included Included

Charger

No Charger Included

Chassis

Body

14-G diamond-plate steel body, tubular frame

Suspension

Dual leaf springs on front and rear

Brakes

Rear hydraulic brakes, 11

Wheels

5.7×8 LRD pneumatic tires

Steering

Automotive steering wheel

Seats

Two bucket seats on slide adjusters

Equipment

Lights

Dual headlights, dual tail/brake lights

Indicators

Battery status indicator

Accessories

Bolt-on Front Bumper, DC/DC converter to equalize battery cells

Safety

Deadman seat switch, reverse alarm, Horn

Vehicle

Weight

1,500 lbs.

Height

53″

Length

130″

Width

54″

Ground Clearance

77″

Hitch Height

23″

Deck

Deck Height

54″

Battery

Battery Weight

22,5″

Battery Height

24,8″
