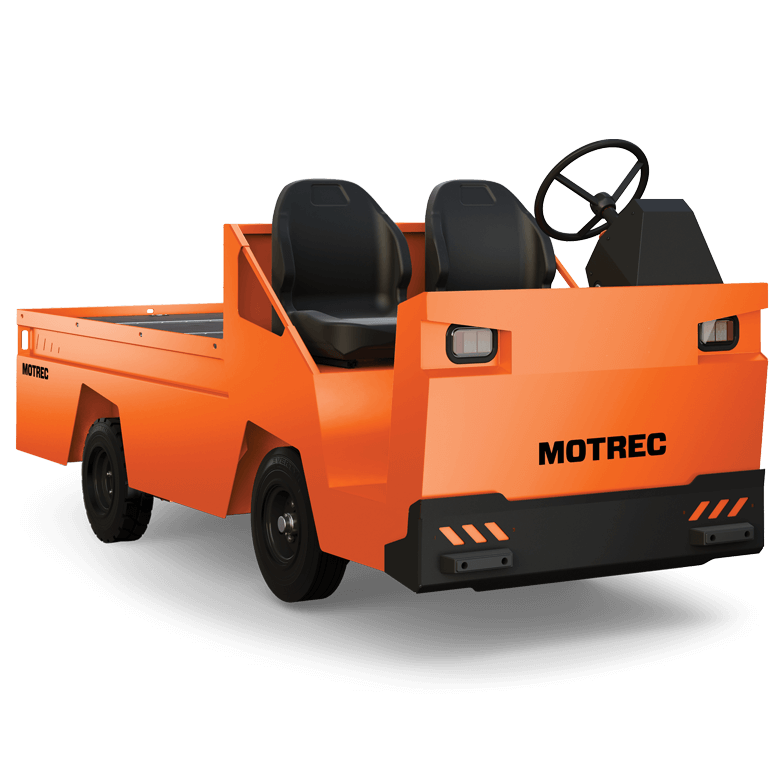

MC-480 48V Motrec

Overview

With its advanced engineering and improved modular design, the MC-480 takes productivity to new places. It boasts superior components throughout, including a high-efficiency AC powertrain and controller with multifunction display, direct drive differential and larger drum brakes. Its well-balanced rear-battery design increases maneuverability, traction and braking—even when carrying heavy loads. Standard features include bolt-on front bumper and all-steel unibody construction. A safe, rugged, do-it-all vehicle with unlimited configurations.

Overview

Passengers

2

Load Capacity

3,000 lbs.

Towing Capacity

6,000 lbs.

Speed

10 mph

Turning Radius

124″

Powertrain

Motor

Brushless AC motor, 9 HP Intermittent, 15 HP Max

Drive Axle

Helical gear differential

Transmission

Direct drive

Controller

AC Electronic speed controller

Energy

Voltage

48V

Battery

Eight 6V-232AH batteries

Charger

High frequency, built-in, automatic

Chassis

Body

All-steel unibody construction

Suspension

Dual leaf springs on front and rear

Brakes

Rear hydraulic drum brakes

Wheels

5.7×8 LRD pneumatic tires

Steering

Automotive steering wheel

Seats

Two bucket seats on slide adjusters

Equipment

Lights

Dual head lights, dual LED tail/brake lights

Indicators

Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.

Accessories

Bolt-on front bumper, DC/DC converter to equalize battery cells

Safety

Deadman seat switch, reverse alarm, horn

Vehicle

Height

45″

Length

123″

Width

45″

Ground Clearance

56″

Hitch Height

31″

Deck

Deck Height

45″

Battery
