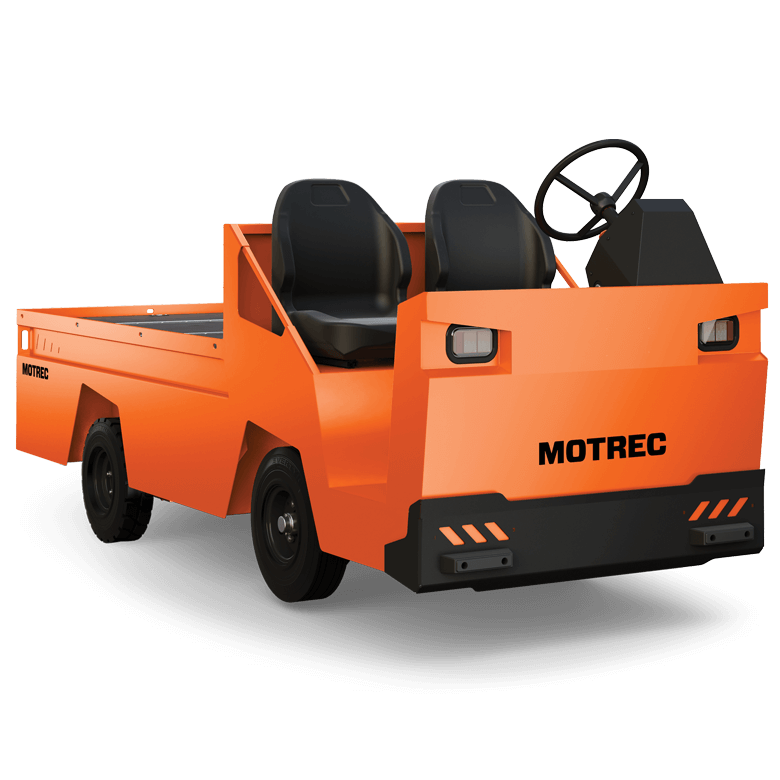

MC-480 36V Motrec

Overview

With its advanced engineering and improved modular design, the MC-480 takes productivity to new places. It boasts superior components throughout, including a high-efficiency AC powertrain and controller with multifunction display, direct drive differential and larger drum brakes. Its well-balanced rear-battery design increases maneuverability, traction and braking—even when carrying heavy loads. Standard features include bolt-on front bumper and all-steel unibody construction. A safe, rugged, do-it-all vehicle with unlimited configurations.

Overview

Passengers

2

Load Capacity

3,000 lbs.

Towing Capacity

6,000 lbs.

Speed

10 mph

Turning Radius

124″

Powertrain

Motor

Brushless AC motor, 7.5 HP Intermittent, 10 HP Max

Drive Axle

Helical gear differential

Transmission

Direct drive

Controller

AC Electronic speed controller

Energy

Voltage

36V

Battery

Six 6V-232AH batteries

Charger

High-frequency (50/60HZ, 110/220VAC). Built-in & automatic.

Chassis

Body

All-steel unibody construction

Suspension

Dual leaf springs on front and rear

Brakes

Rear hydraulic drum brakes, electromagnetic parking brake with manual hand release

Wheels

5.7×8 LRD pneumatic tires

Steering

Automotive steering wheel

Seats

Two bucket seats on slide adjusters

Equipment

Lights

Dual head lights, dual LED tail/brake lights

Indicators

Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.

Accessories

Bolt-on front bumper, DC/DC converter to equalize battery cells

Safety

Deadman seat switch, reverse alarm, horn

Vehicle

Height

45″

Length

123″

Width

45″

Ground Clearance

56″

Hitch Height

31″

Deck

Deck Height

45″
